Add Application-Aware Routing

At this stage, we have achieved full management of our SD-WAN infrastructure using an Infrastructure as Code approach. From now on, we are going to perform all changes in the infrastructure following the DevOps framework, treating changes as if we are developing code.

Add New Application as Part of Our Policies

We have received a request to add a new application as part of our centralized policies:

Name of the application list: Google_Apps_Updates Applications included:

android-updates
chrome_update
youtube
youtube_hd SLA Class name: SLA-GOOGLE Parameters for the SLA:
Latency: 250ms
Loss percentage: 2%

It is requested to use application-aware routing for better optimization of our links. It will be placed under Test_application_aware_routing_number2 and will use AAR-Default routing.

Before we start, below are examples of the YAML samples and dependencies.

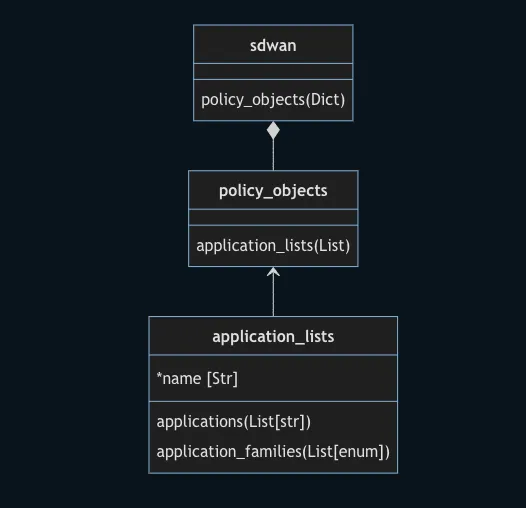

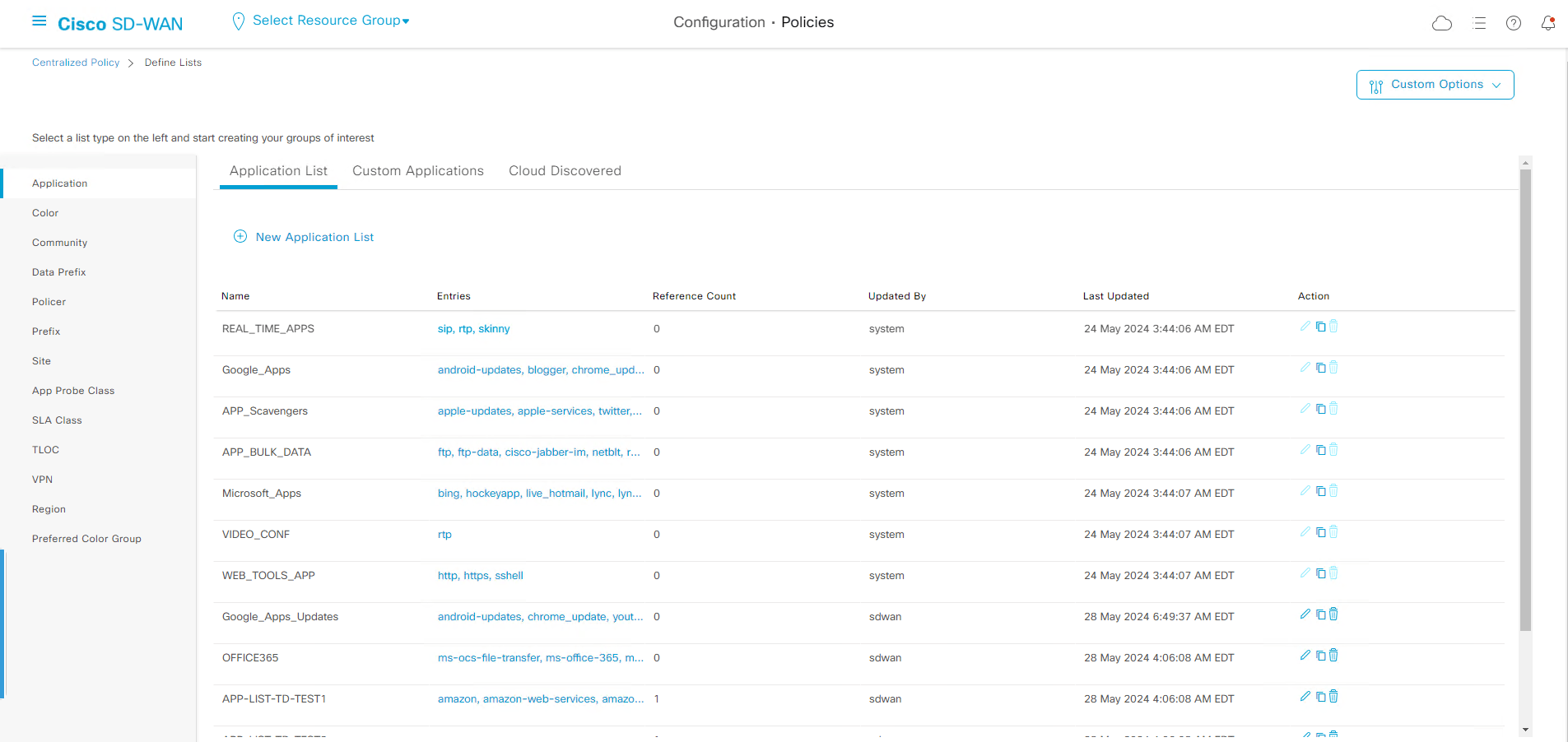

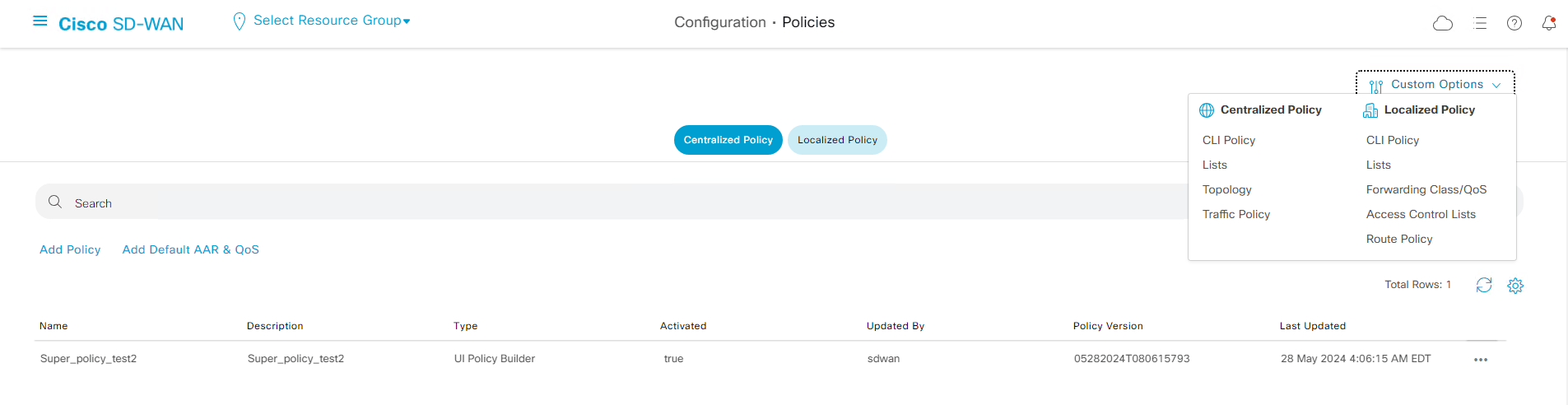

Application List Diagram

sdwan:
  policy_objects:
    application_lists:
      - name: amazon_aws_apps
        applications:
          - amazon
          - amazon-web-services
          - amazon-instant-video
          - amazon-cloudfront
          - amazon-ec2
          - amazon-s3

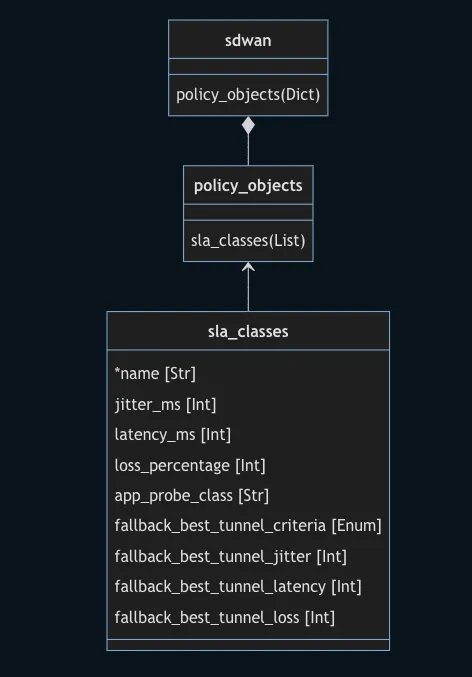

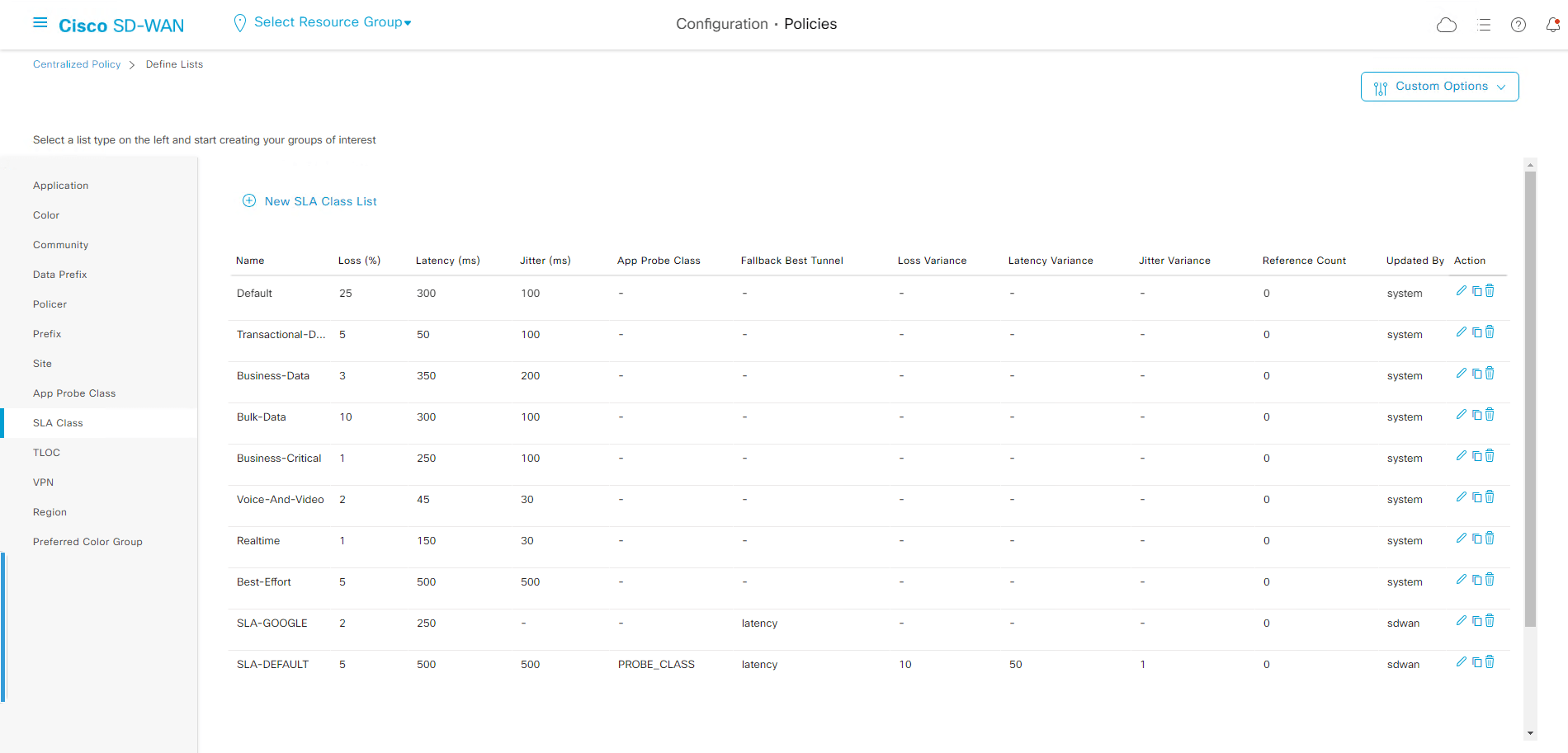

SLA List Diagram

sdwan:
  policy_objects:
    sla_classes:
      - name: Best-Effort
        latency_ms: 200
        loss_percentage: 1
        fallback_best_tunnel_criteria: latency

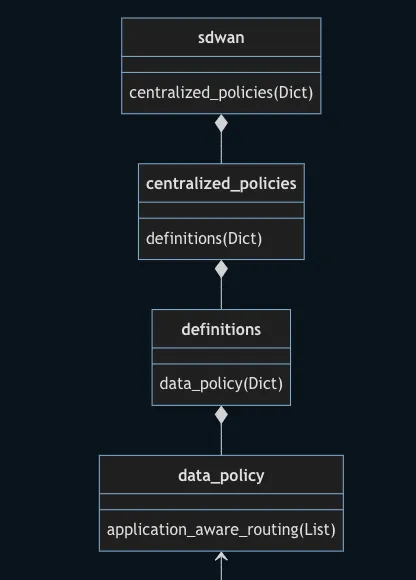

Centralized Policies Diagram Part 1

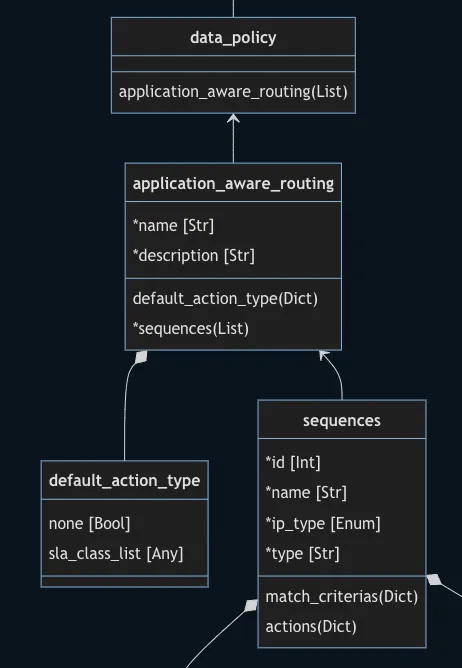

Centralized Policies Diagram Part 2

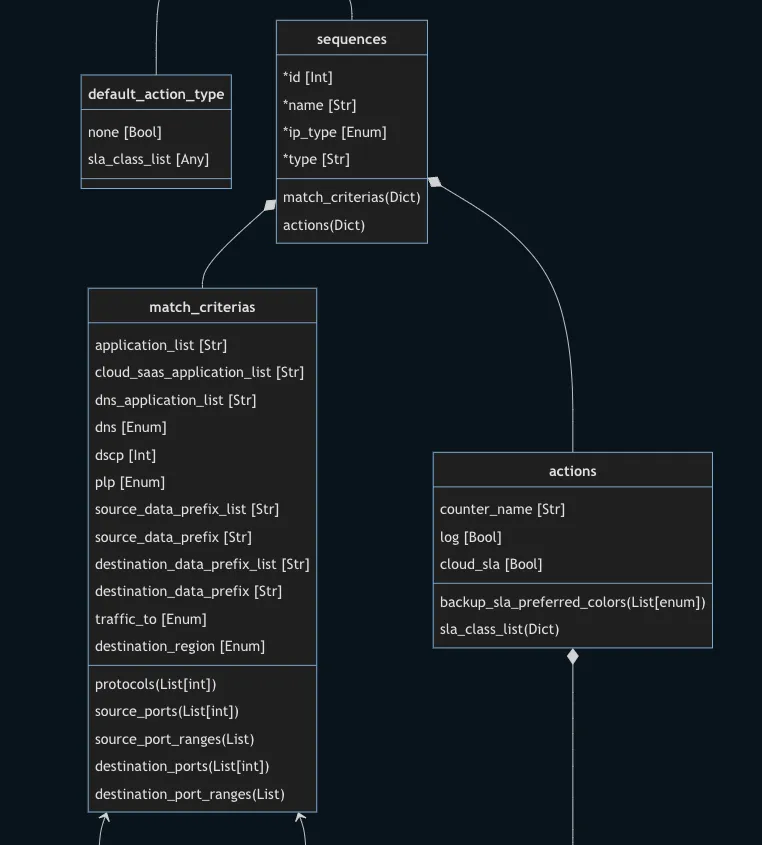

Centralized Policies Diagram Part 3

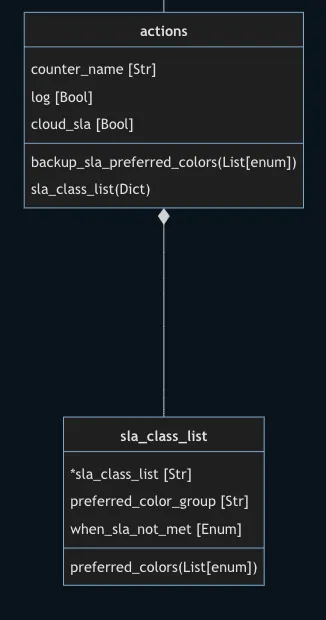

Centralized Policies Diagram Part 4

sdwan:
  centralized_policies:
    definitions:
      data_policy:
        application_aware_routing:
          - name: Test_application_aware_routing_number2
            description: Test_application_aware_routing_number2
            default_action_type:
              sla_class_list: default
            sequences:
              - id: 1
                name: aar_rule
                ip_type: ipv4
                type: app_route
                match_criterias:
                  application_list: APP-LIST-TD-TEST3
                actions:
                  counter_name: abc
                  log: true
                  sla_class_list:
                    sla_class_list: Best-Effort-AAR
                    preferred_colors:
                     - "demo"
                    when_sla_not_met: fallback_to_best_path

Step 1: Create New Branch

Create a new branch where we are going to make the changes and name it ciscolive-app.

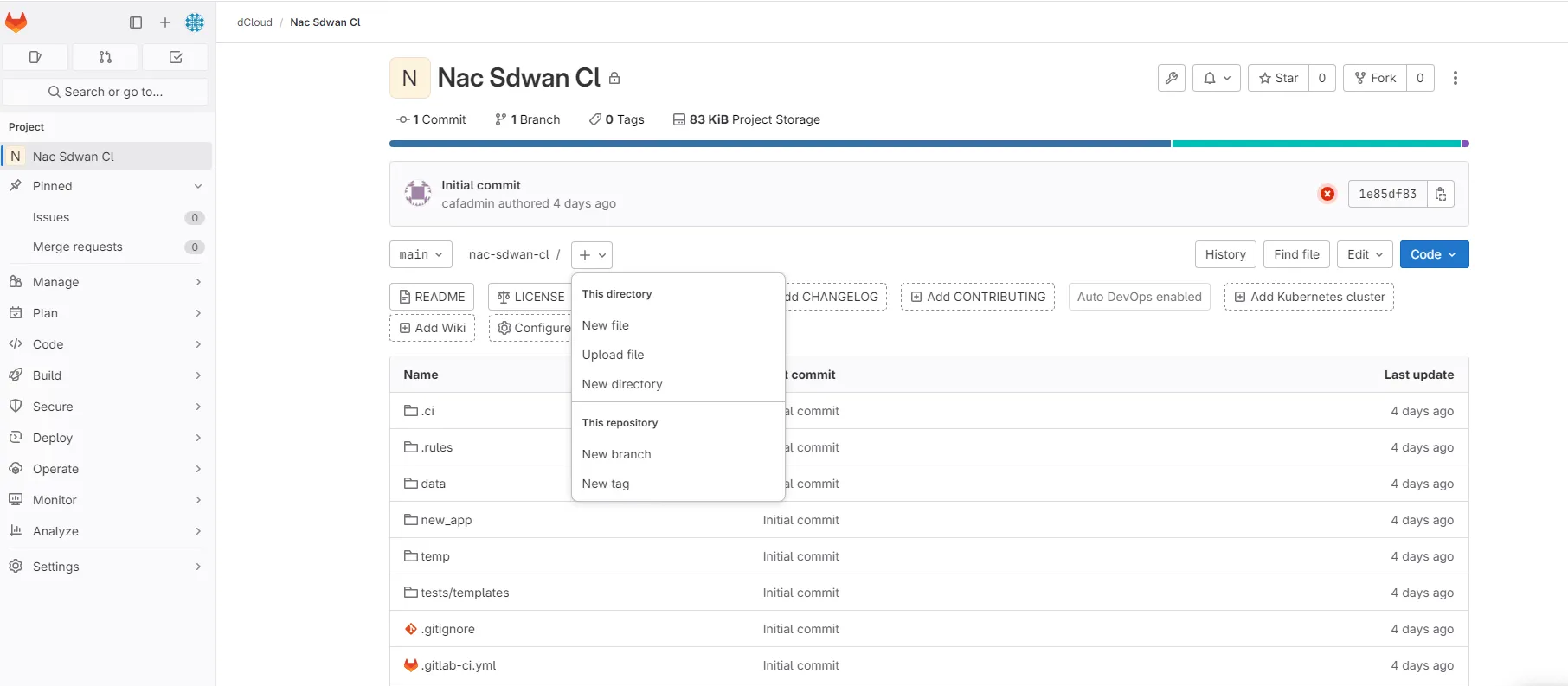

Create Branch

Step 2: Open WEB IDE

Now in the new branch, open the WEB IDE so we can edit the repository.

Step 3: Create Files

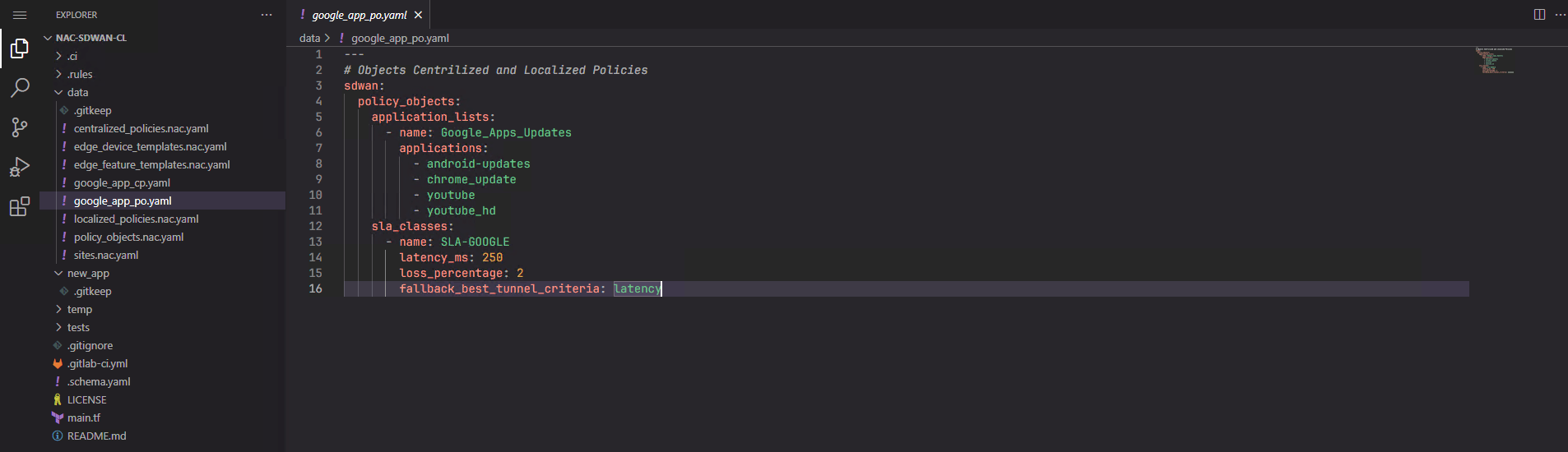

Create two files google_app_po.yaml and google_app_cp.yaml by following the structure under the data folder.

---

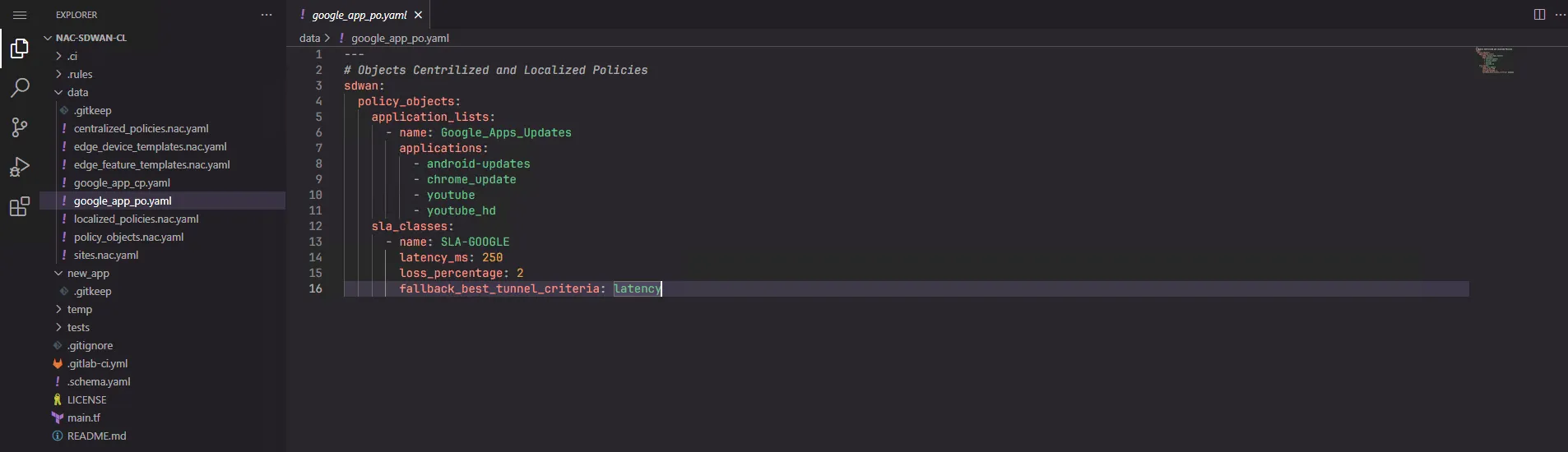

# Objects Centrilized and Localized Policies
sdwan:
  policy_objects:
    application_lists:
      - name: Google_Apps_Updates
        applications:
          - android-updates
          - chrome_update
          - youtube
          - youtube_hd
    sla_classes:
      - name: SLA-GOOGLE
        latency_ms: 250
        loss_percentage: 2
        fallback_best_tunnel_criteria: latency

and for the new centralized policies object.

---

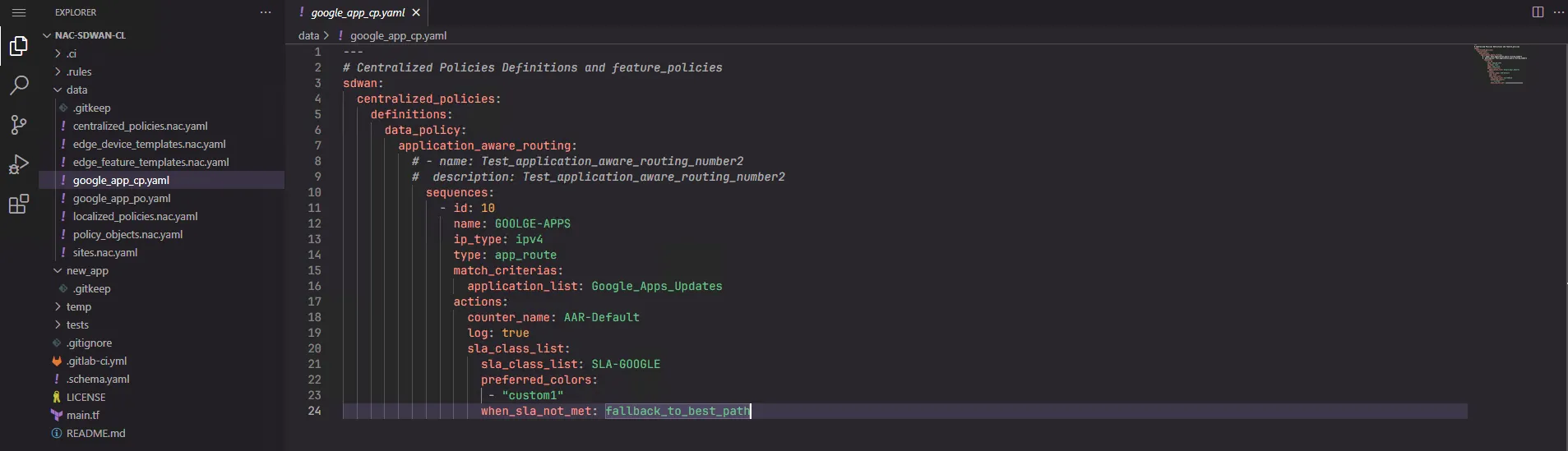

# Centralized Policies Definitions and feature_policies
sdwan:
  centralized_policies:
    definitions:
      data_policy:
        application_aware_routing:
          # - name: Test_application_aware_routing_number2
          #  description: Test_application_aware_routing_number2
            sequences:
              - id: 10
                name: GOOLGE-APPS
                ip_type: ipv4
                type: app_route
                match_criterias:
                  application_list: Google_Apps_Updates
                actions:
                  counter_name: AAR-Default
                  log: true
                  sla_class_list:
                    sla_class_list: SLA-GOOGLE
                    preferred_colors:
                     - "custom1"
                    when_sla_not_met: fallback_to_best_path

google_app_cp

google_app_po

Step 4: Save and Commit

Save the files and commit with the comment add app.

Step 5: Validate

Validate the status of the pipeline and open it to check the validation in more detail.

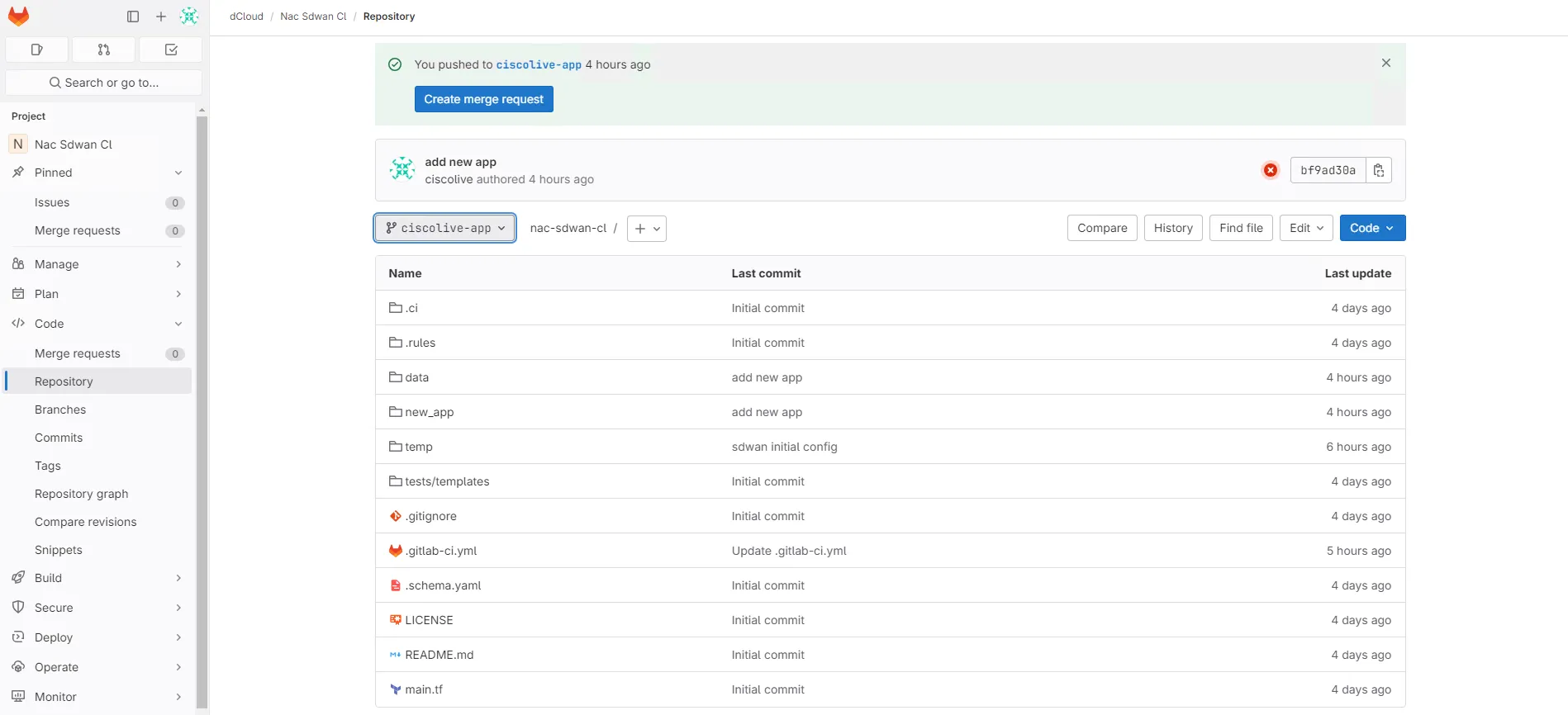

pipeline_validation_failed

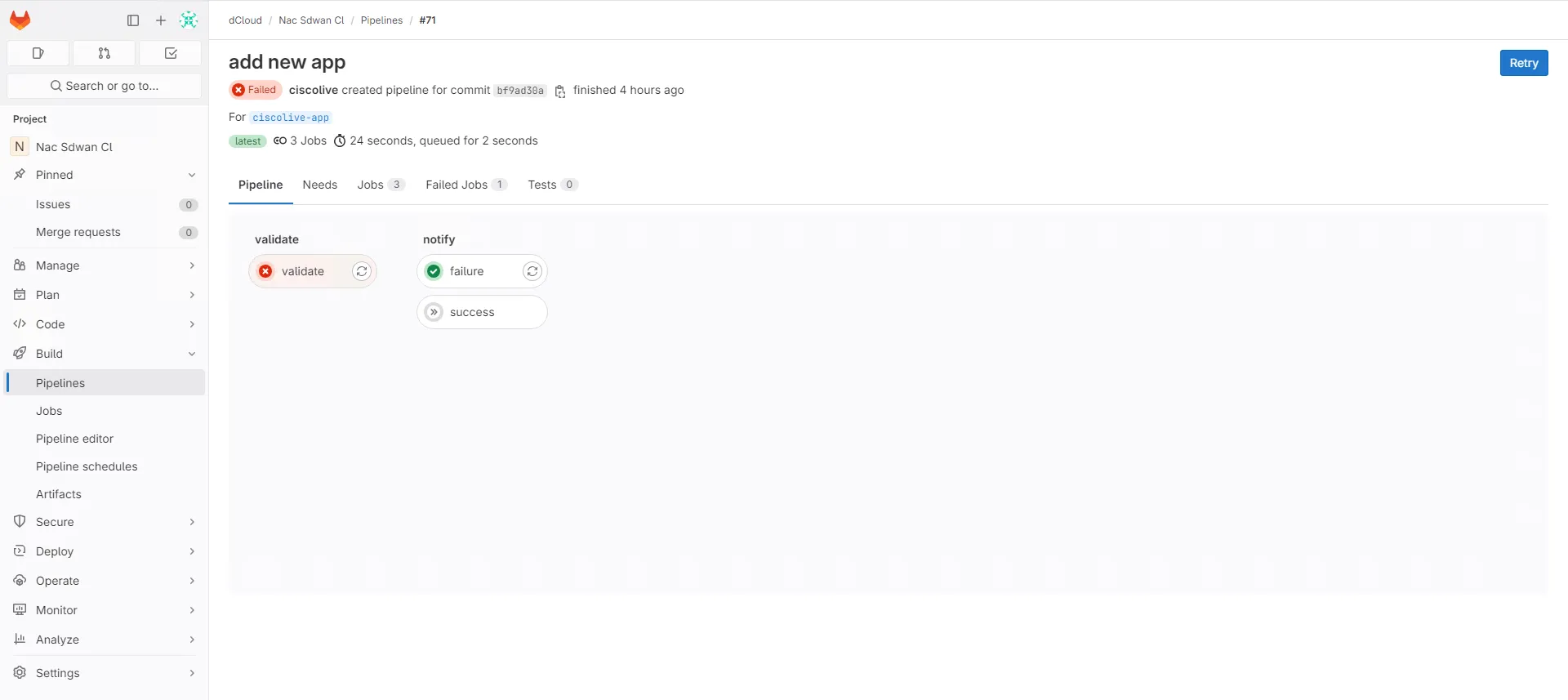

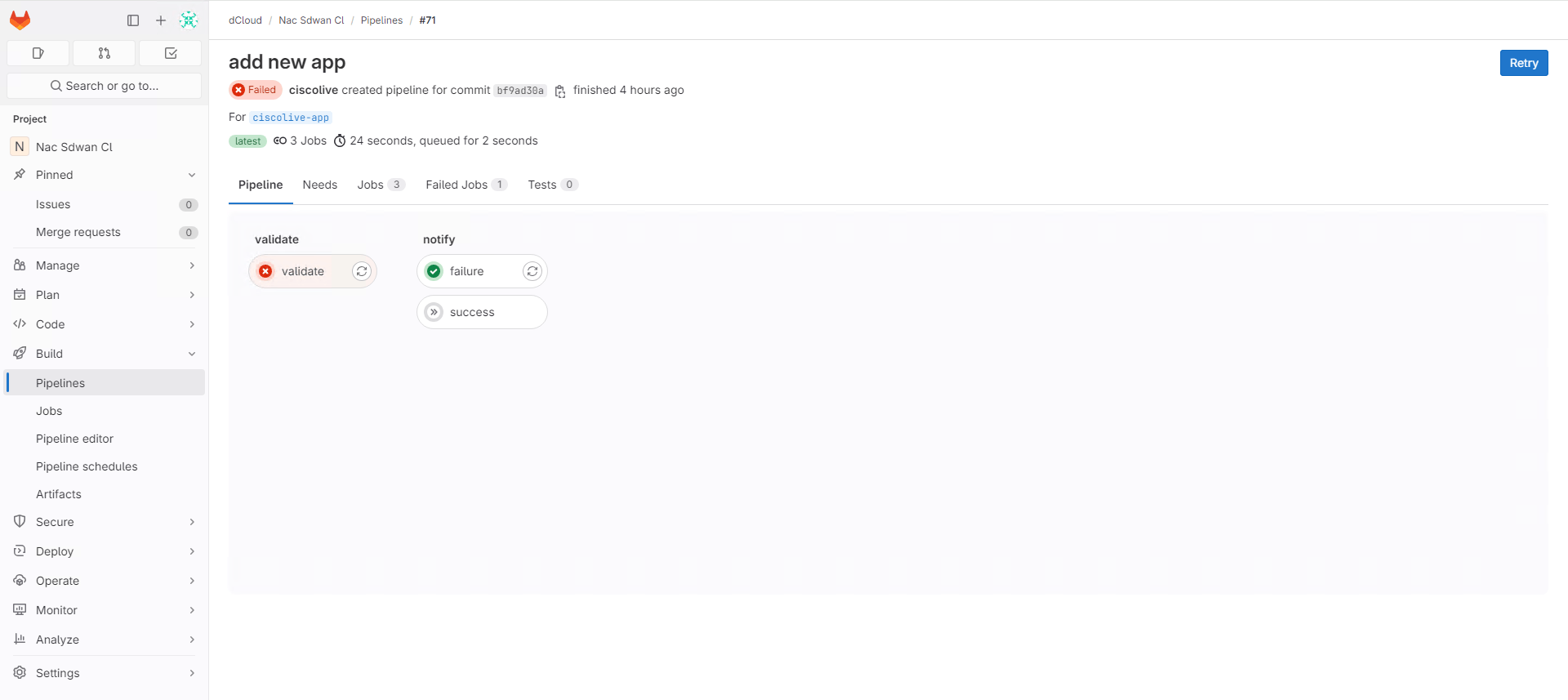

open_validation_failed

Step 6: Correct Error

Correct the error based on the pipeline output from the validate script.

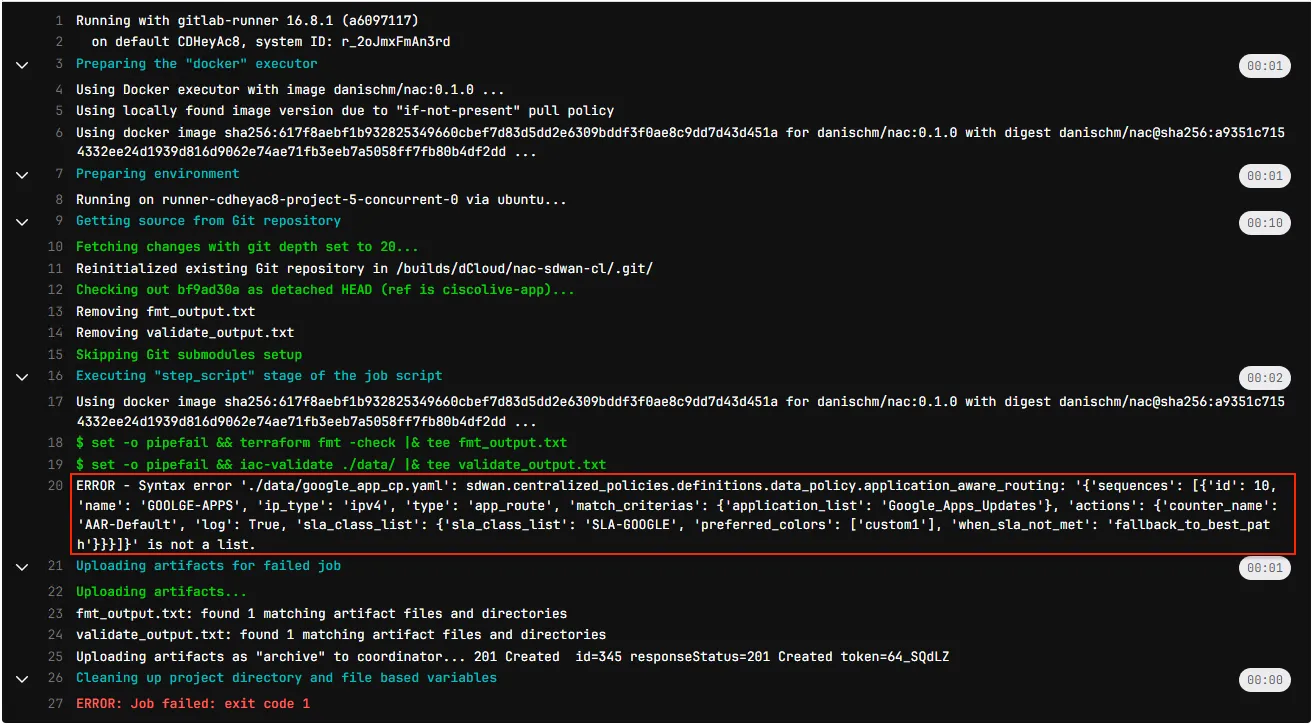

syntax_error_1

Step 7: Add Missing Data

Add the data that is missing according to the suggestion. Open the centralized_policies.nac.yaml to locate the data that is missing from a similar policy.

sdwan:
  centralized_policies:
    definitions:
      data_policy:
        application_aware_routing:
          - name:

What we are missing is the definition of the name for application-aware routing. Let’s uncomment that part of the file and commit the change with the name add app 2.

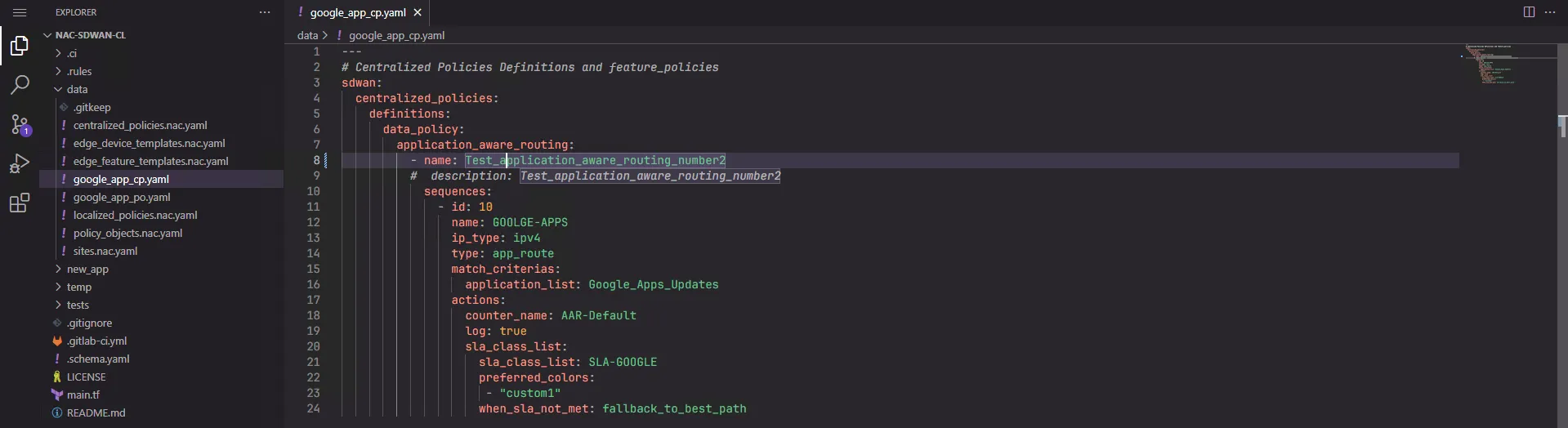

google-app-cp_2

Step 8: Check If Validation Is Passing

Check if validation is passing after this change.

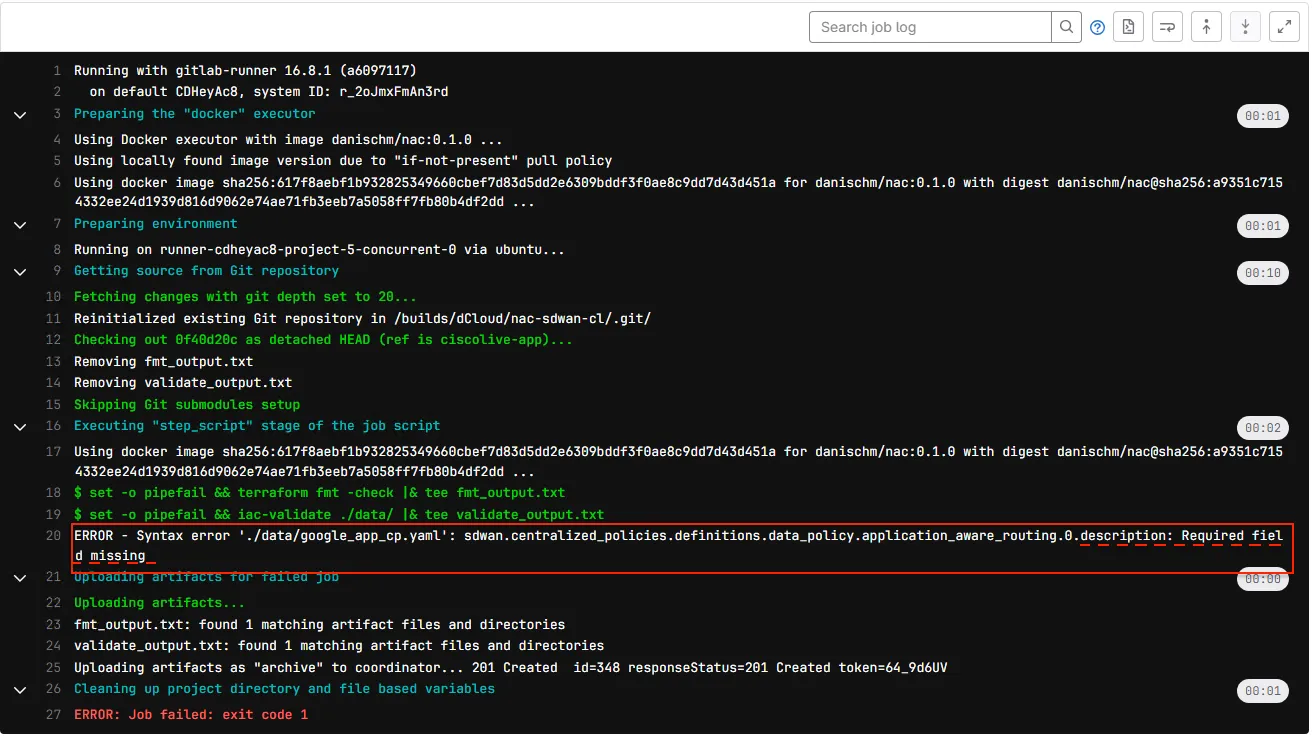

syntax_error_2

Now it is failing again, but with a different error that one parameter is mandatory.

Step 9: Update New Missing Data

Add the new missing data for the description by uncommenting the second line of the configuration and commit as app add 3.

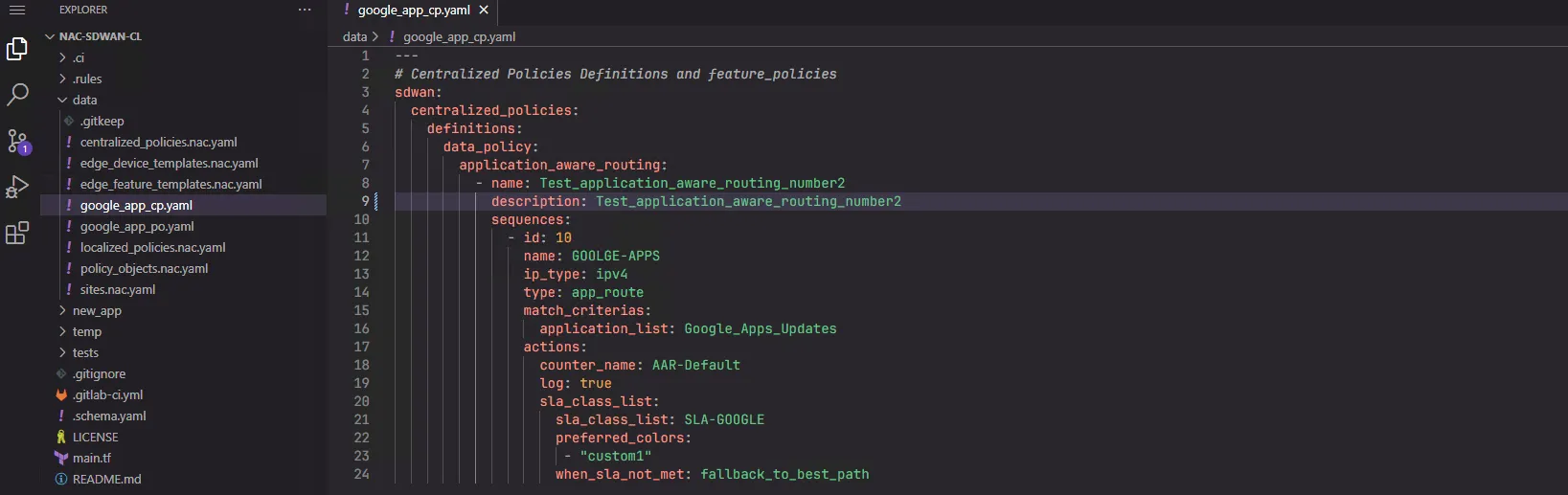

google-app-cp_3

Step 10: Successful Pipeline

Now the pipeline should be passing and is successful, so the next step will be to merge.

Step 11: Merge Request

Request a merge of the code to the main branch.

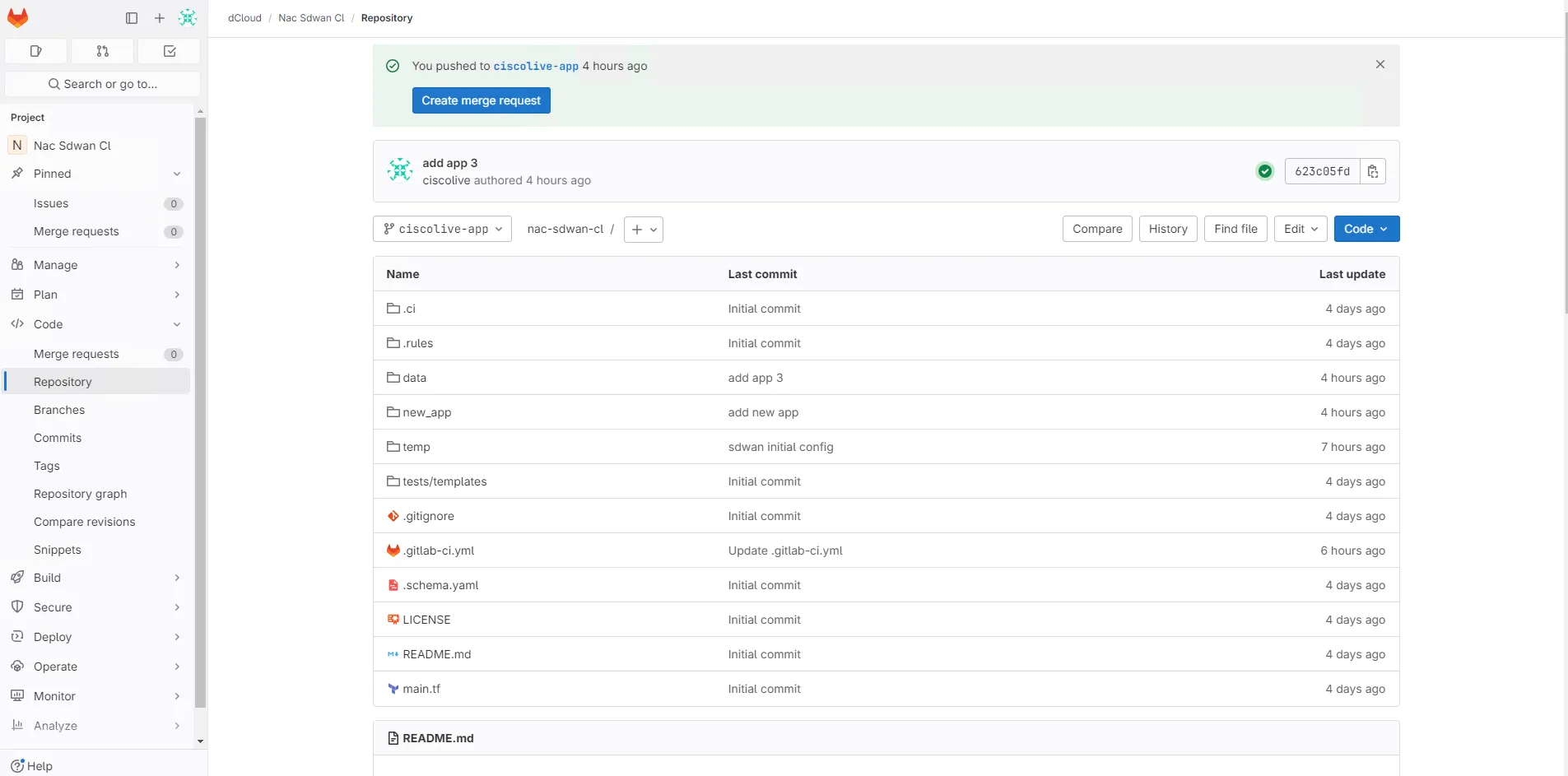

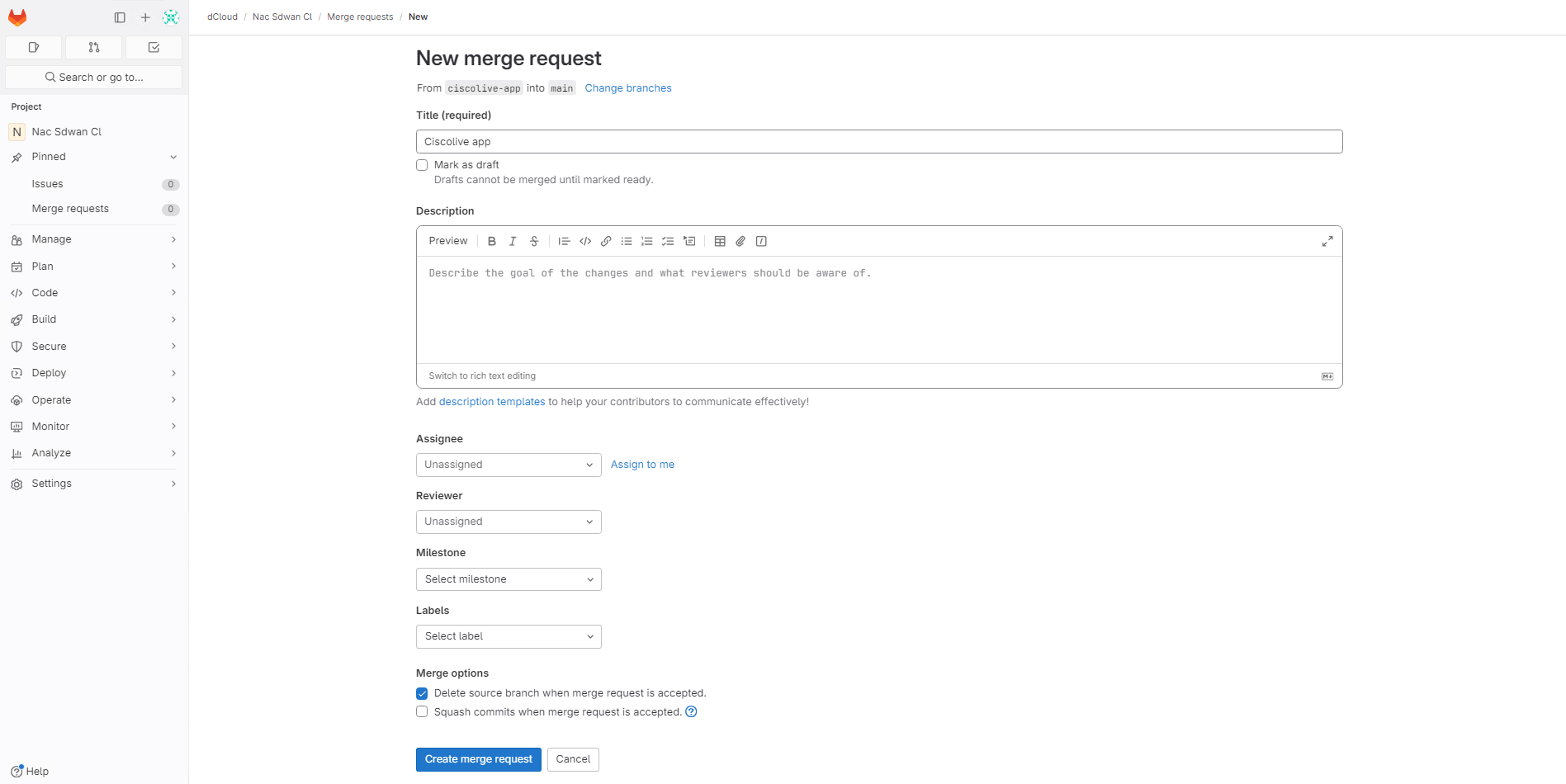

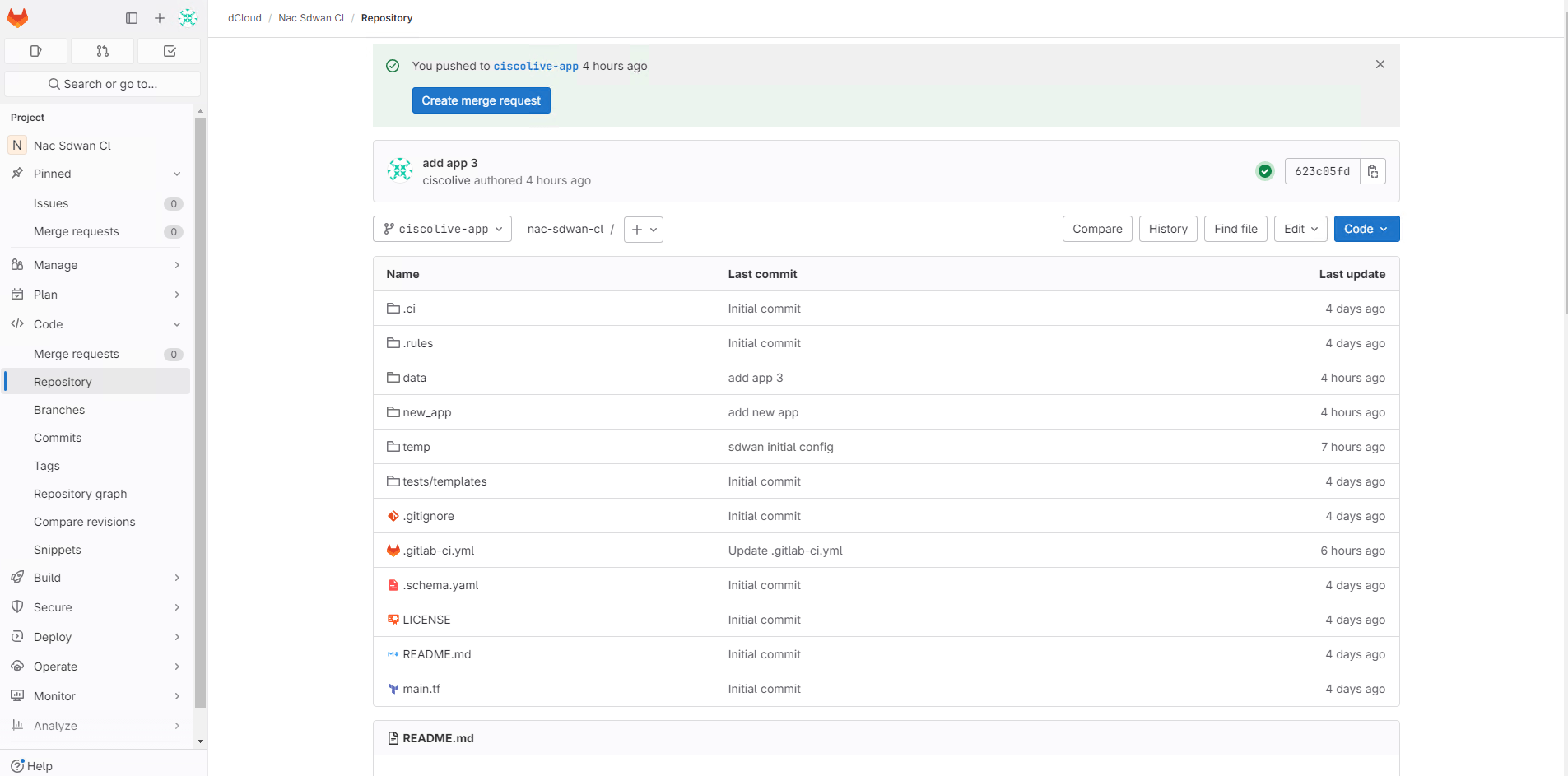

create_merge_day2_1

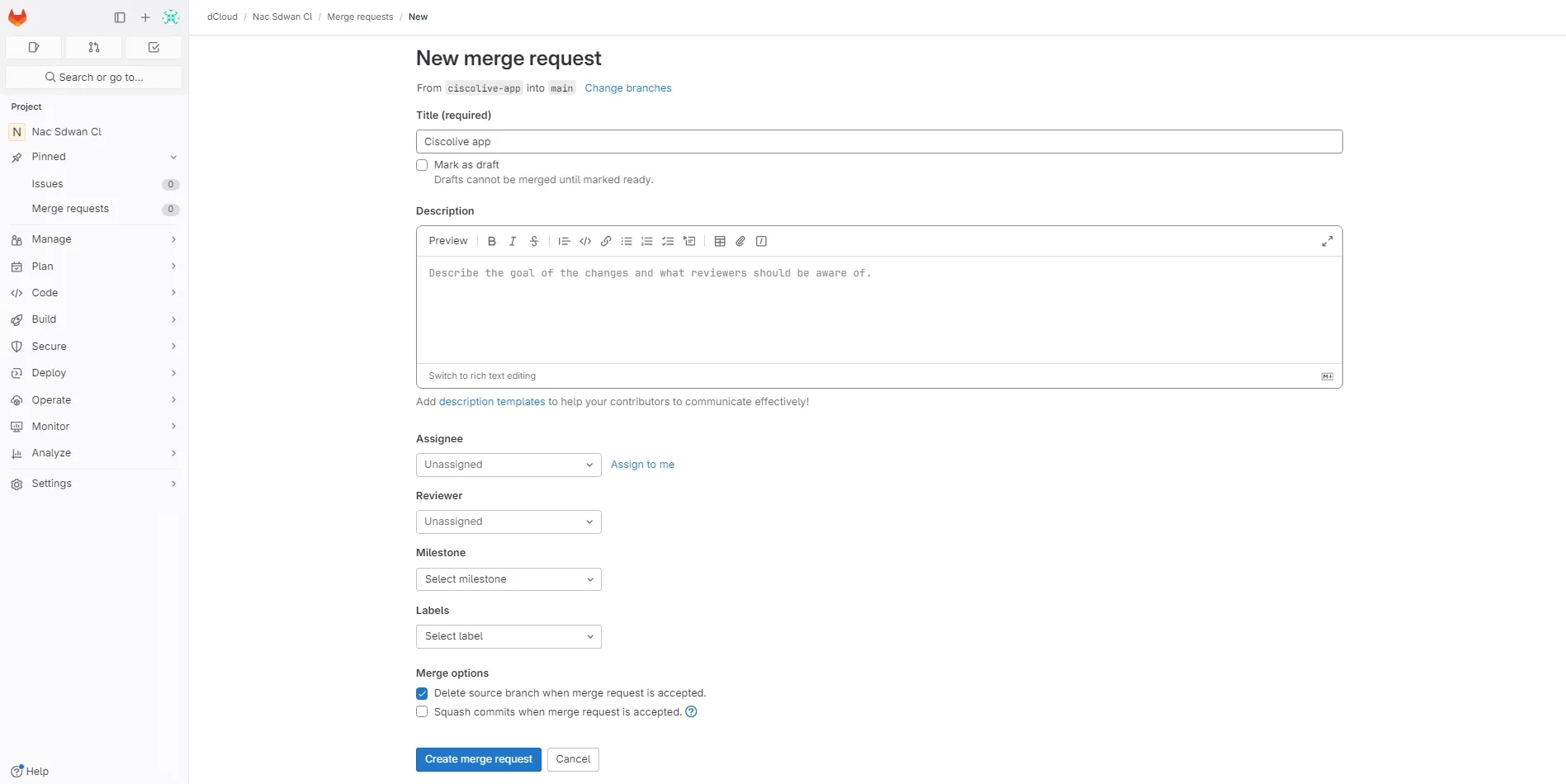

create_merge_day2_2

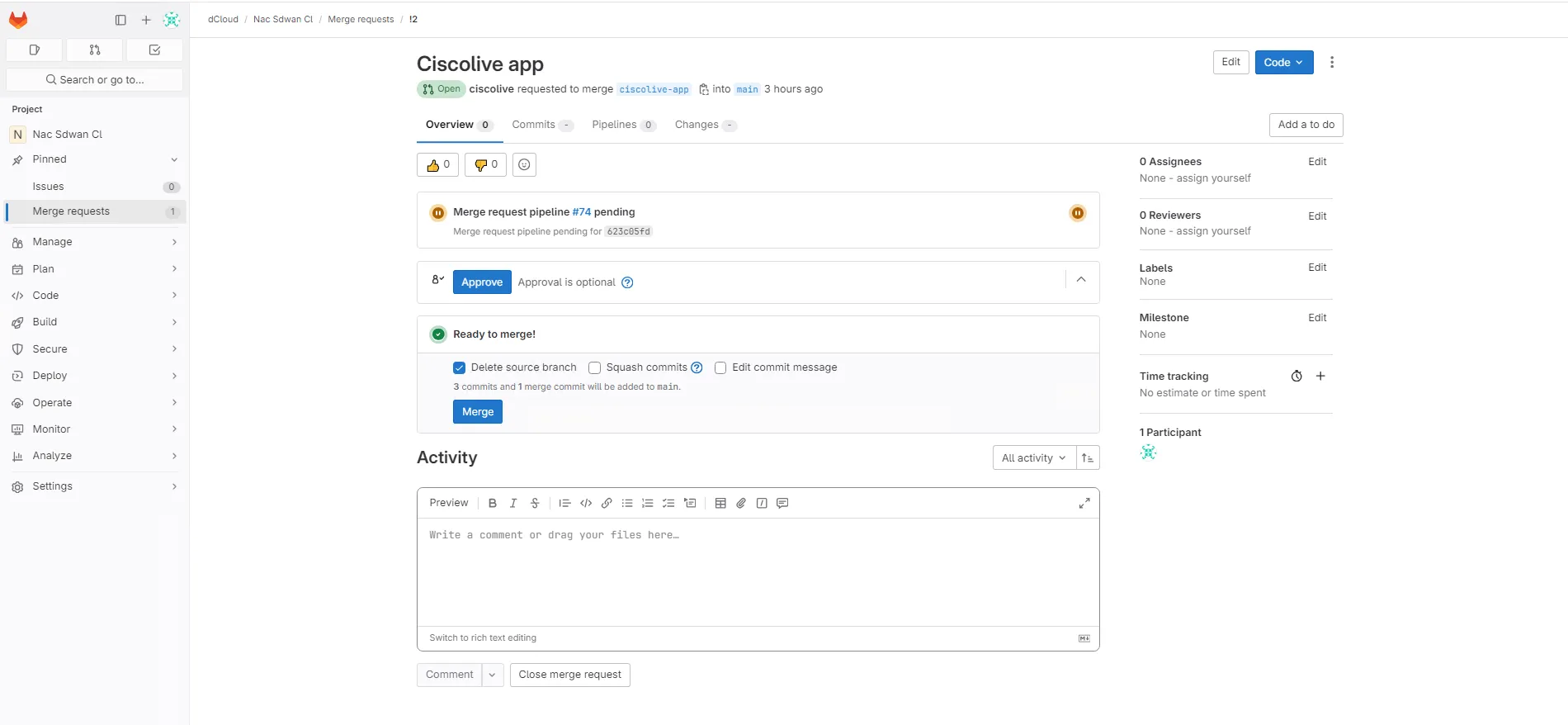

approve_merge_day2

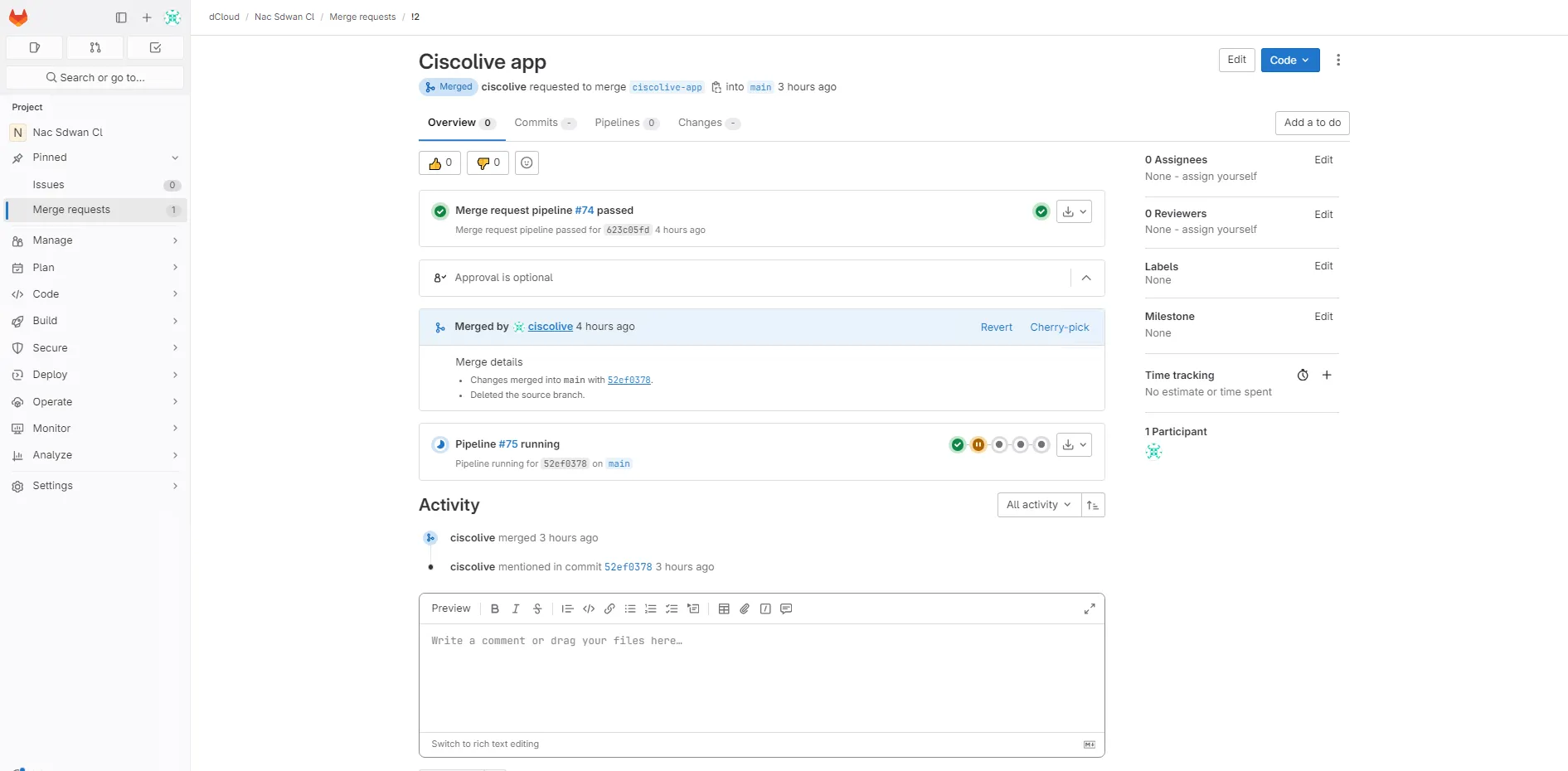

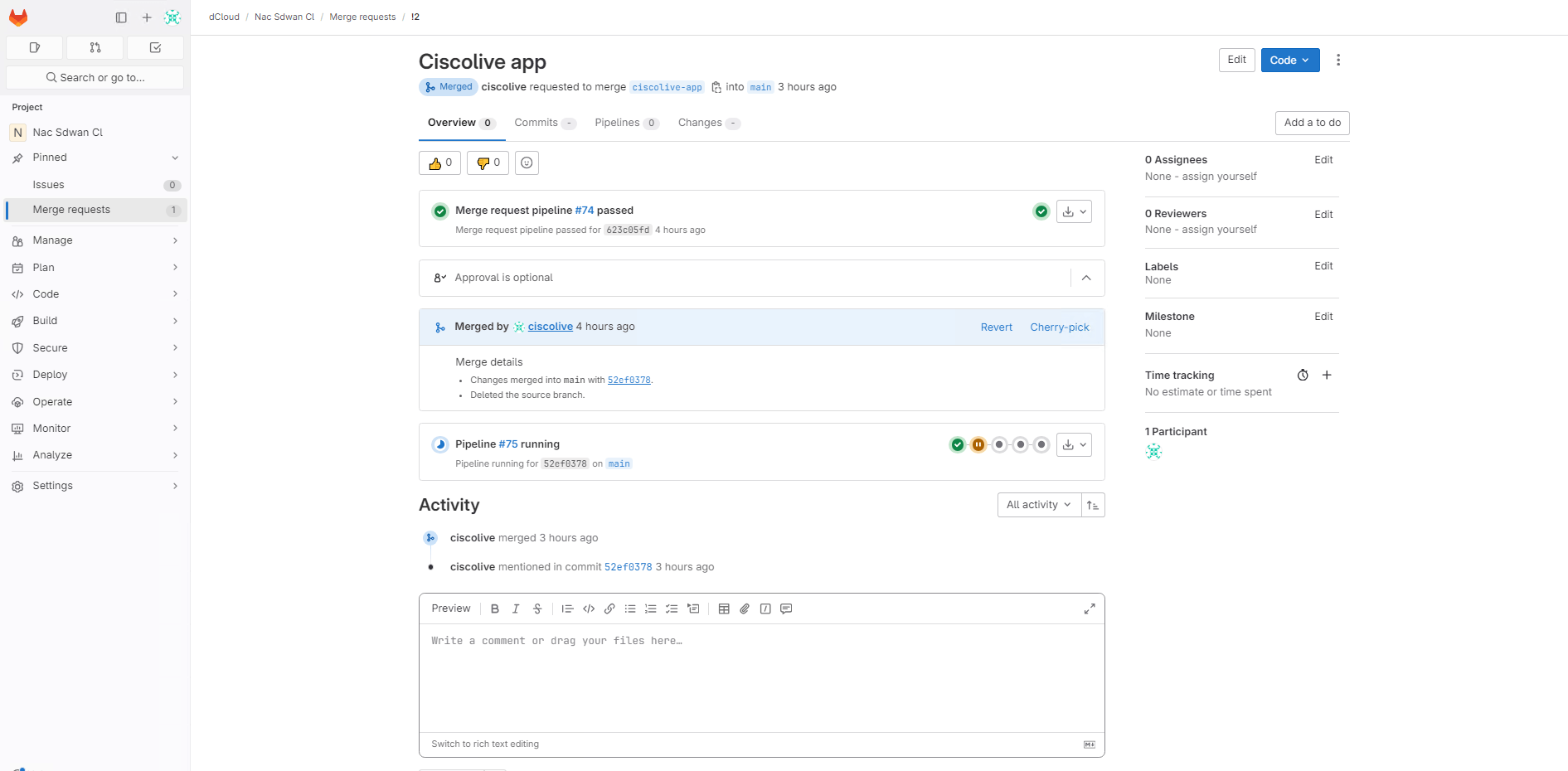

open_pipeline_merge_day2

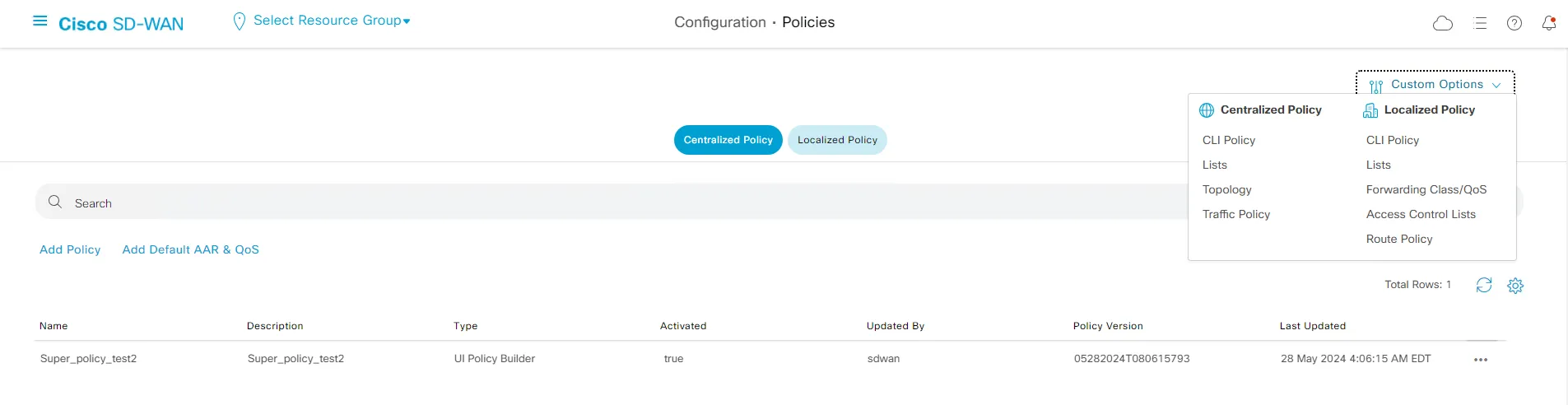

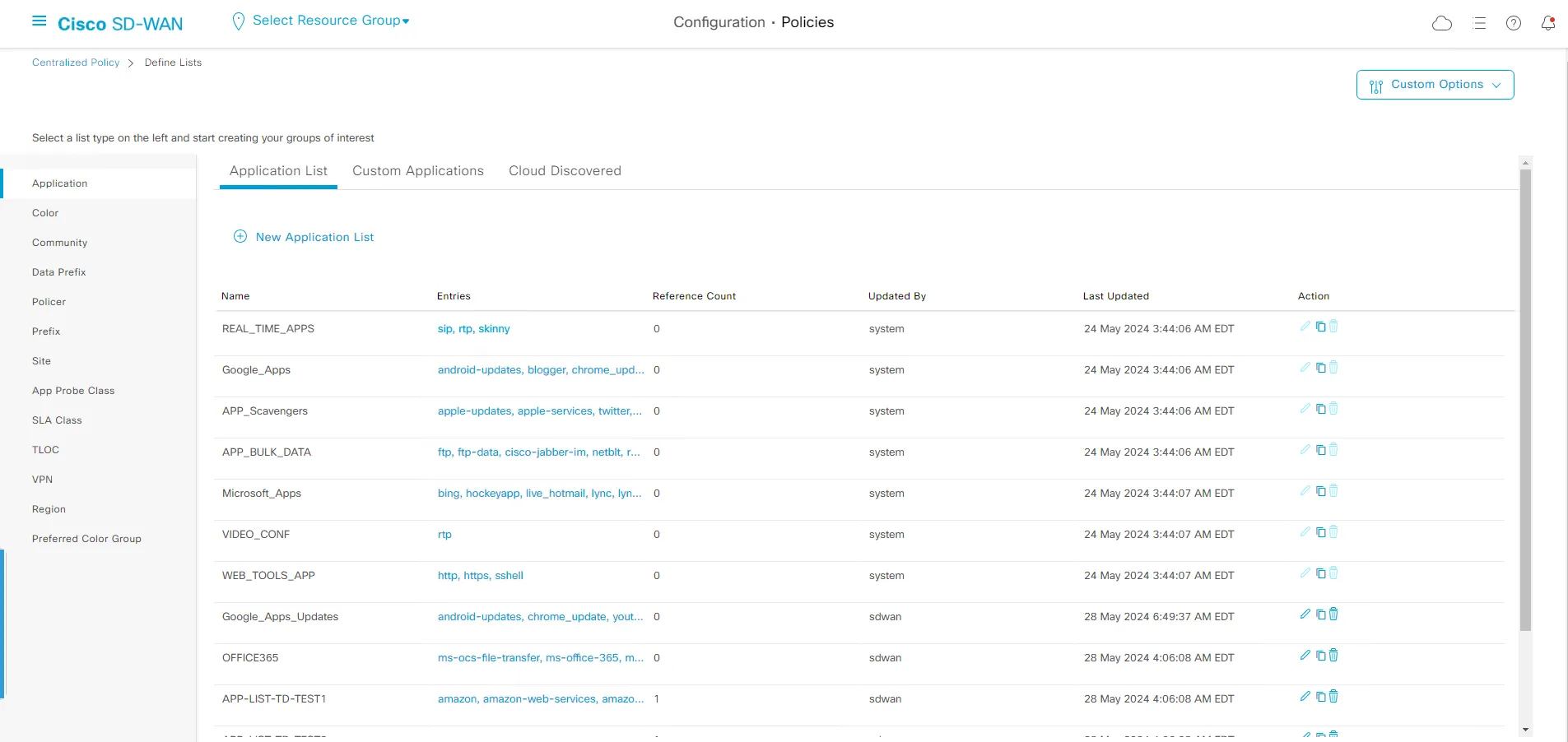

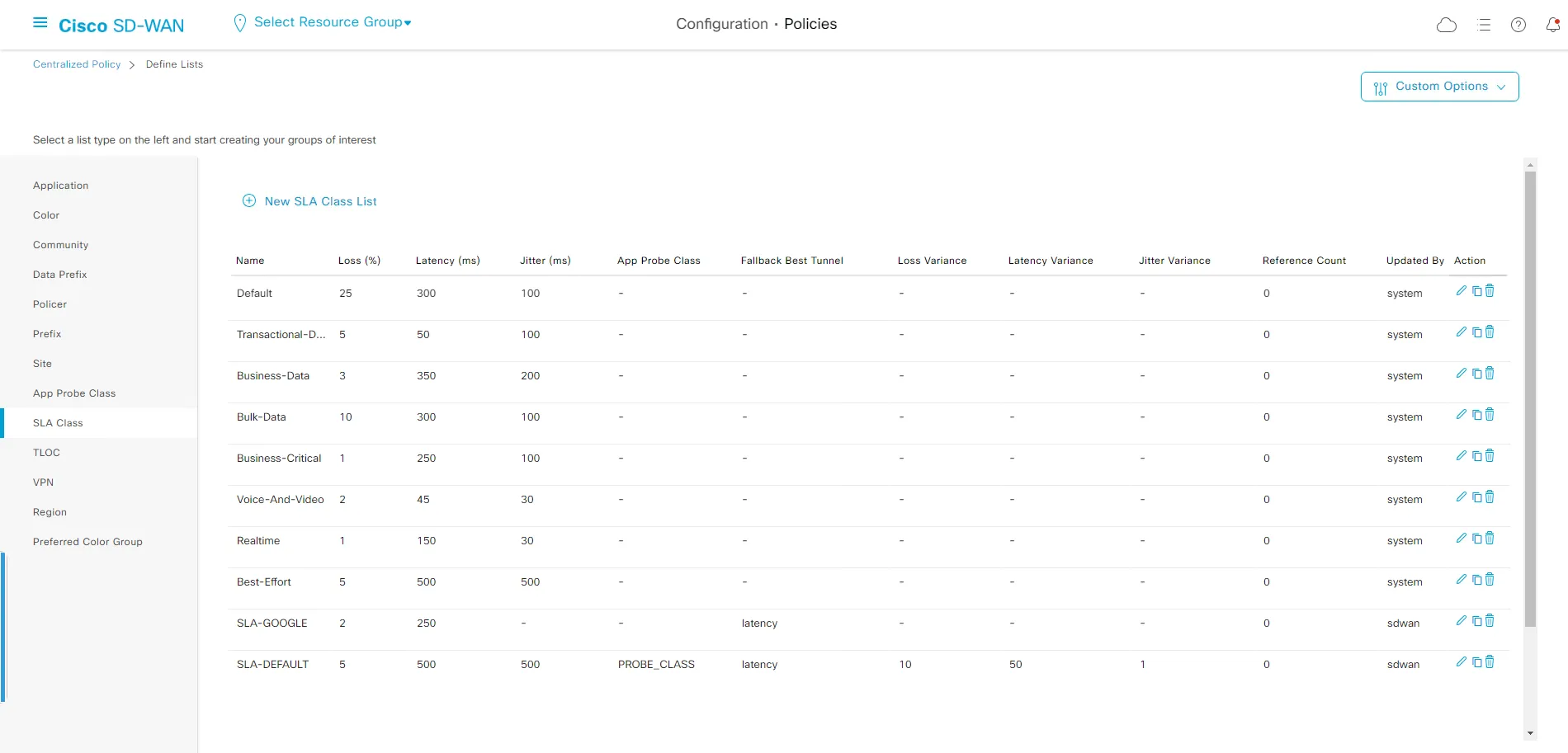

Step 12: Merge Pipeline Status

Check if the pipeline was successfully deployed.

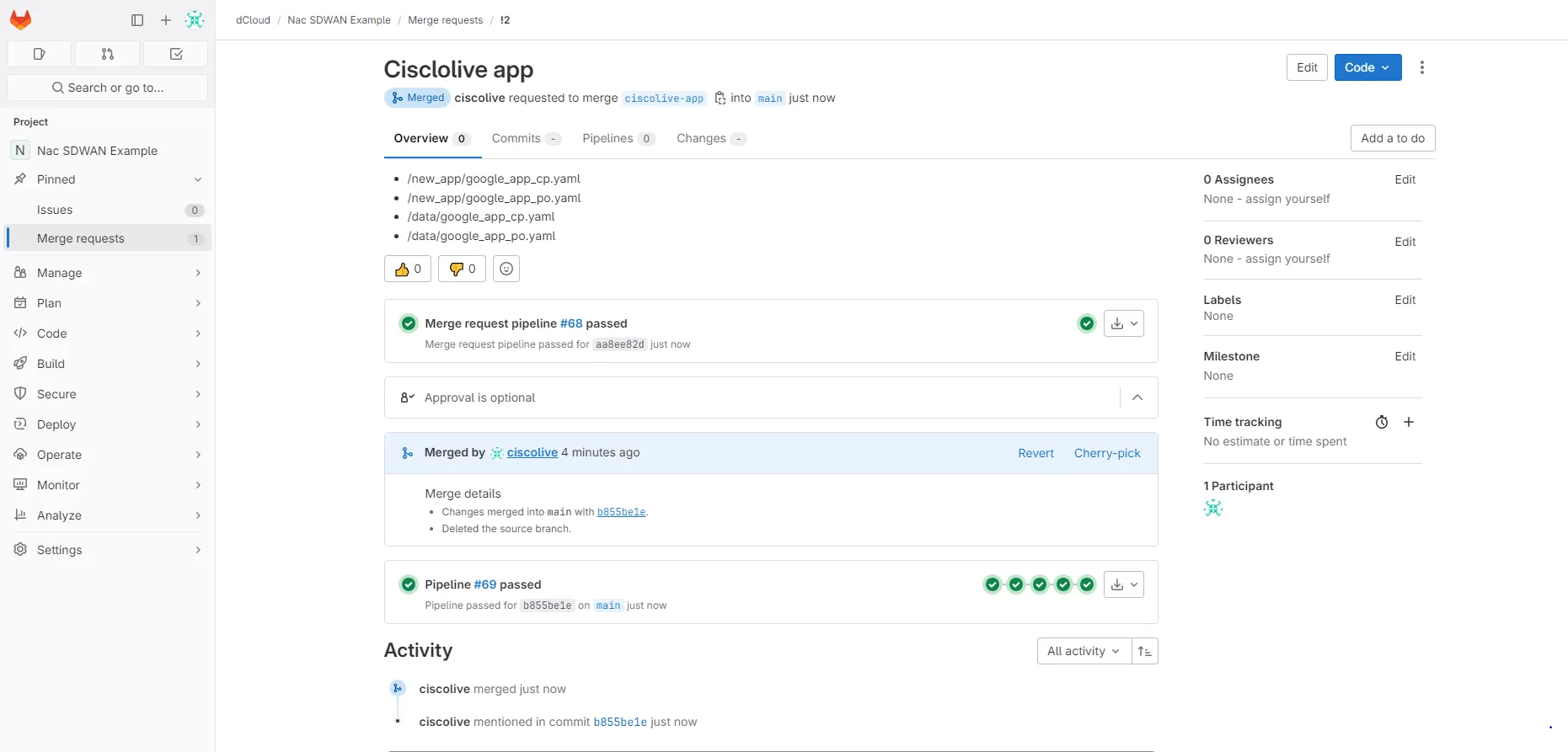

status_merge_day2

Step 13: Test Outputs and Review

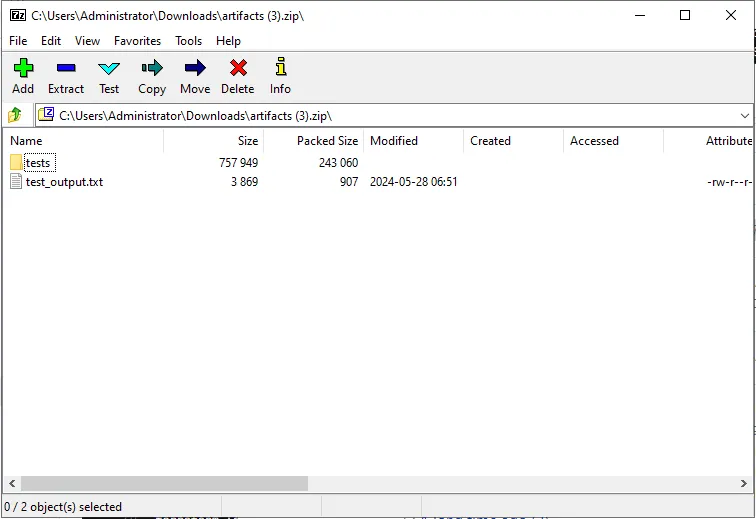

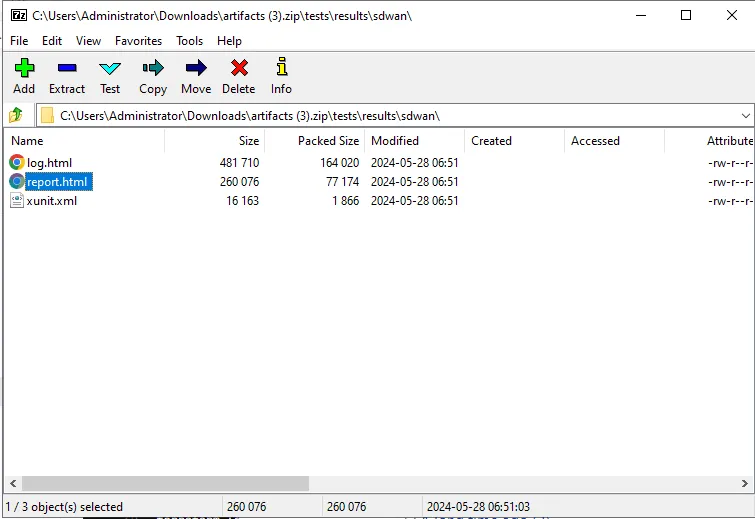

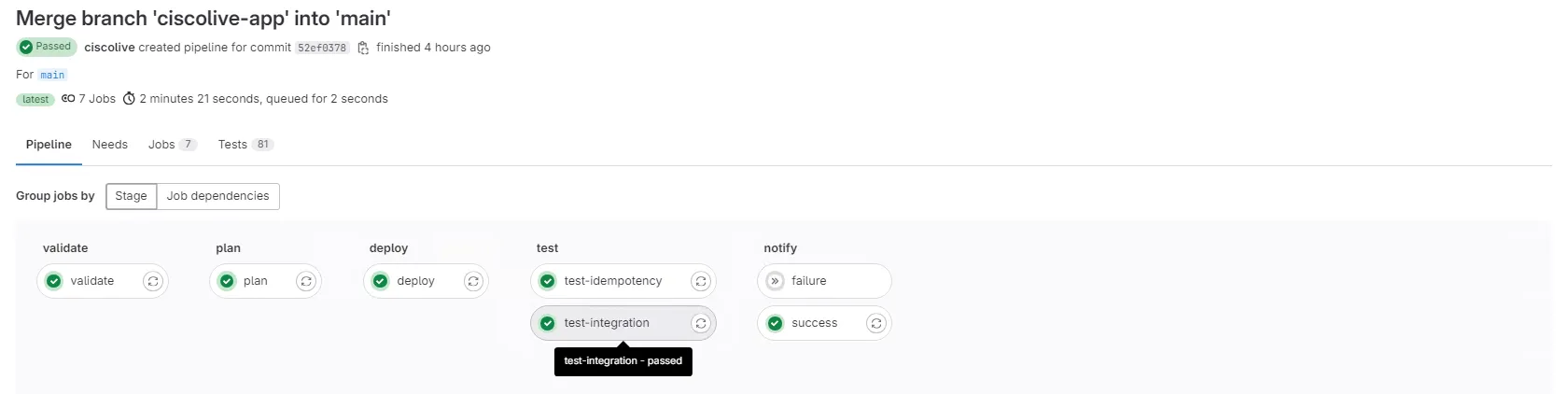

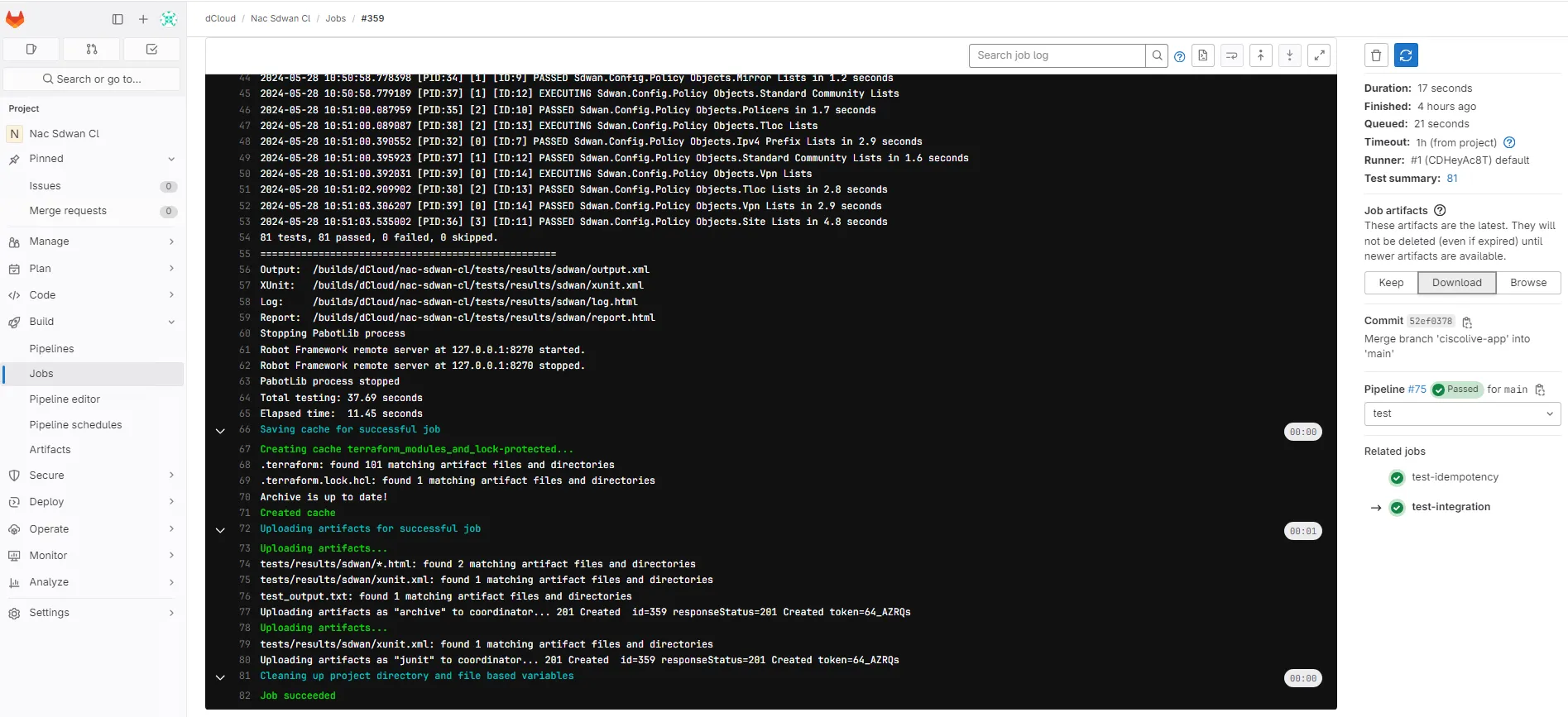

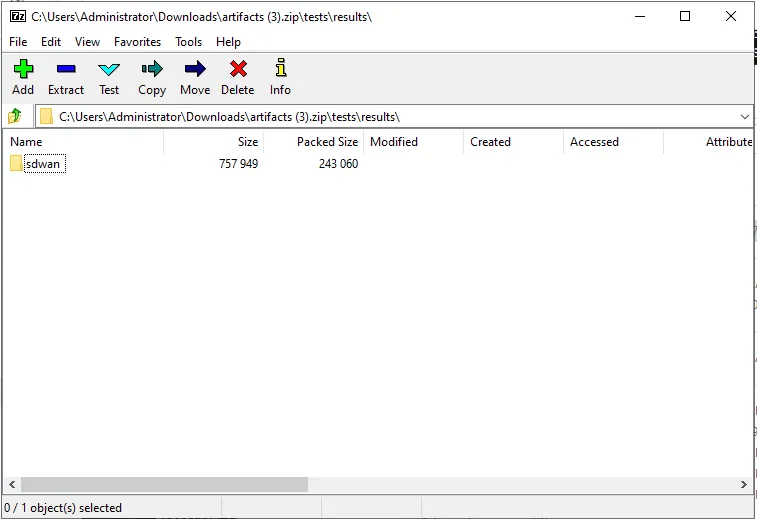

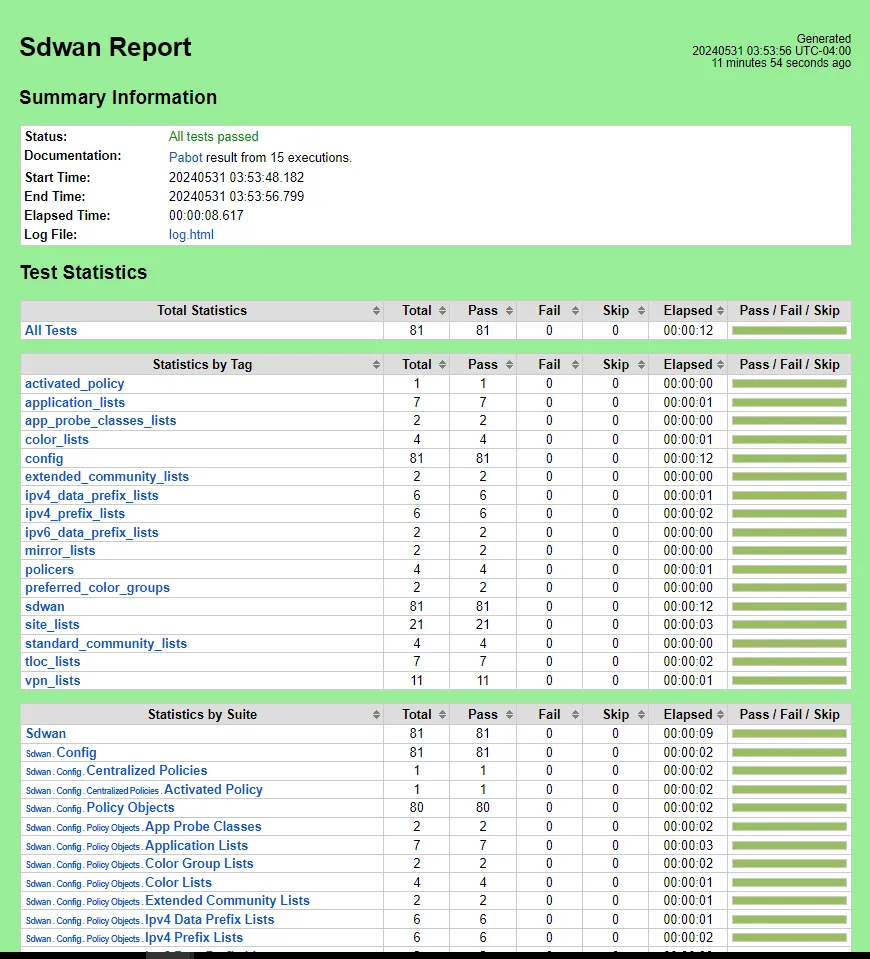

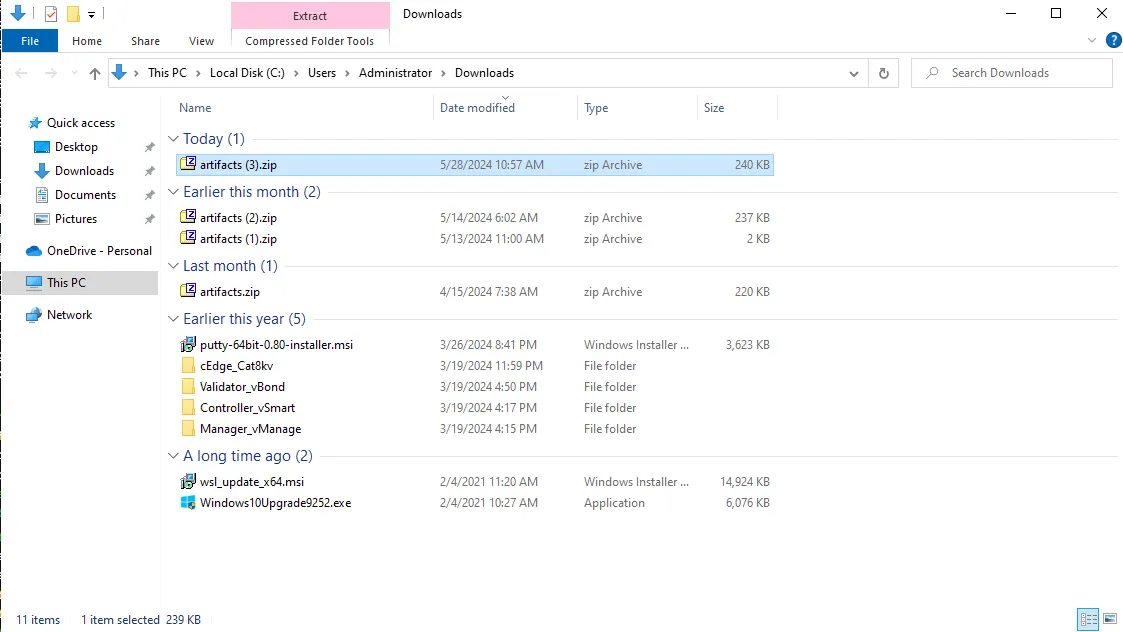

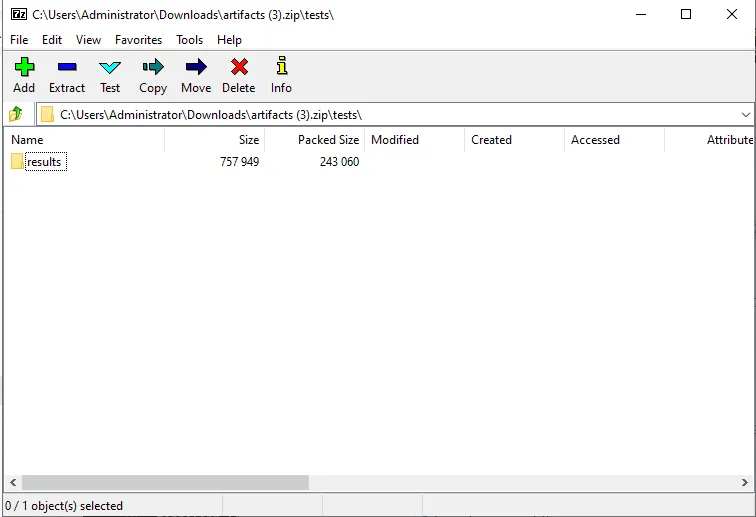

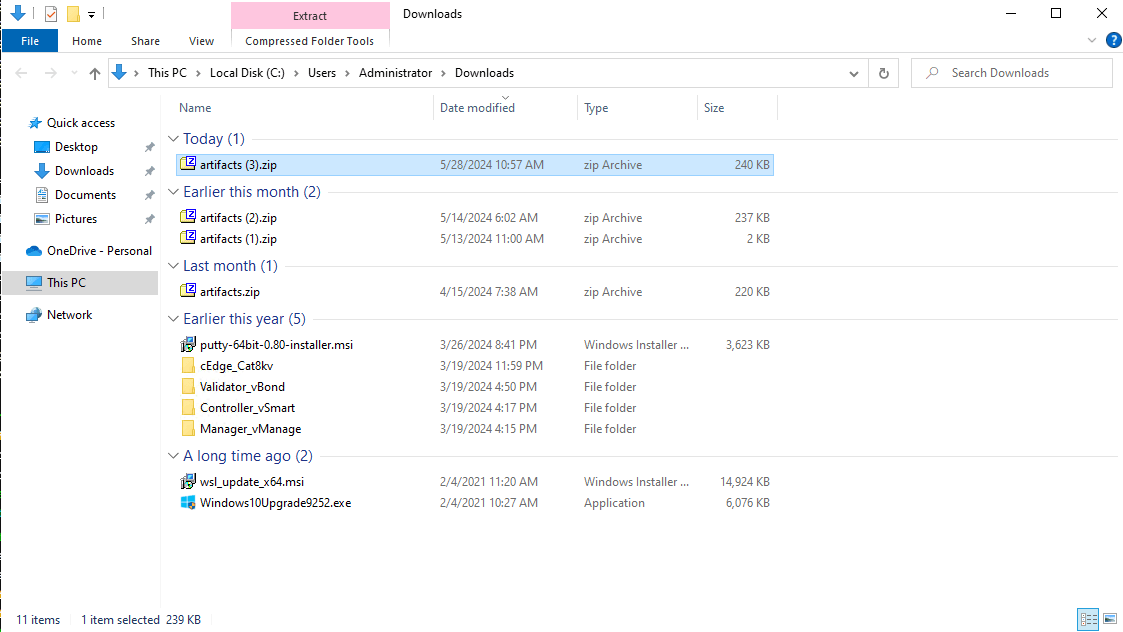

Before we finish the lab, let’s also check the Test Outputs we have already in the pipeline for the last deployment. Press on the test-integration step of the validation and check that there are no any errors detected.

pipeline-test-integration
