Working with NaC Data Model

In this section, we will explore building an example data model for a customer using Network as Code (NaC). The data model will be structured to represent the configuration of an SD-WAN fabric. This hands-on guide includes practical use cases and exercises to help you understand how to define and organize the data needed for SD-WAN deployment.

By the end of this section, you will be able to:

• Understand the SD-WAN data model structure and components
• Create application lists and SLA classes for policy objects
• Configure Application Aware Routing (AAR) policies
• Build device templates using existing feature templates
• Deploy site configurations with proper variable assignments

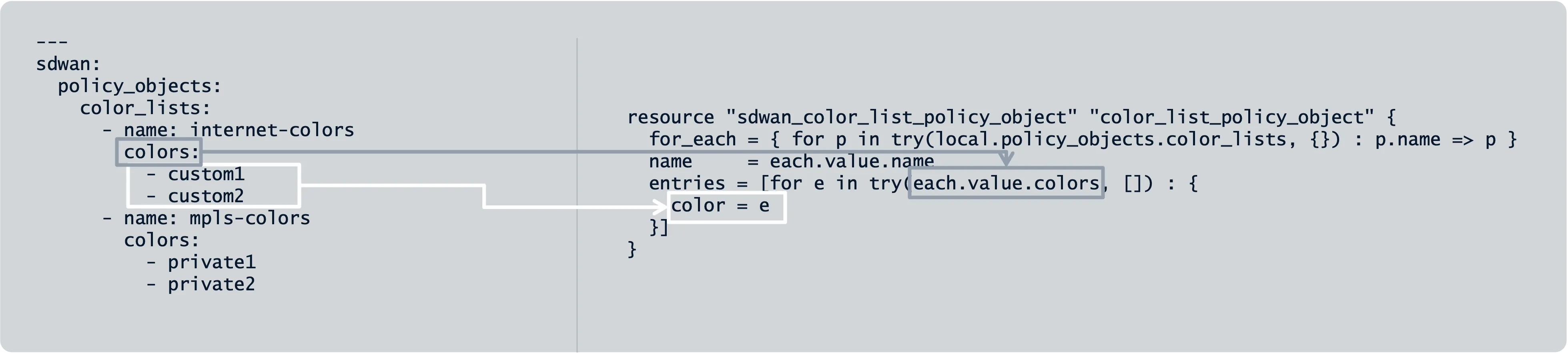

The data model in Network as Code is the structured data (in YAML) that is read by the automation engine. Inside the automation engine (Terraform), the data model is read and the parameters are passed into the specific modules and resources. The following example shows how a terraform resource reads the value from the data model. One of the reasons that we perform validation against the data model is to ensure that when automation execution runs, the data that the automation engine is going to read is correct.

When we talk about infrastructure as code, the data model represents the declaration that the network operator wants to achieve. You declare the intent of the configuration of the network and it is the job of the underlying automation engine to translate the data model information into the actual configuration that is pushed to the network devices. This has the benefit of allowing the network operator to simply declare how the network should be configured instead of having to also write the code to perform the action. In Infrastructure as Code circles, the data model is known as the source of truth.

---
sdwan:
  edge_device_templates:
    - name: "DT-BR-C8000V-01"
      description: "Branch Device Template"
      device_model: "C8000V"
  sites:
    - id: 100
      routers:
        - chassis_id: "C8K-ABCD1234-5678-90EF"
          model: "C8000V"
          device_template: "DT-BR-C8000V-01"

The data model is constrained by the schema definition. Each parameter in the data model is expected to follow a specific type, specific defined values, and whether it is mandatory or not. For SD-WAN, the chassis IDs and device models are required fields. The requirements for the data model are available for viewing in the Network as Code Documentation. The documentation is built from the schema of the data model automatically and enhanced by engineers working on the technology. This represents the source of truth for the data model.

The SD-WAN data model is organized into several key components:

• centralized_policies: Control policies, AAR (Application Aware Routing), Data policies
• edge_device_templates: Device template definitions with feature templates
• edge_feature_templates: Individual feature configurations (System, VPN, Interface, etc.)
• localized_policies: Route policies, ACLs, QoS policies applied locally
• policy_objects: Reusable policy components (SLA classes, application groups)
• sites: Site-specific configurations and device deployments

|-- data/
|   |-- centralized_policies.nac.yaml     # Centralized policy and definitions: Control policy, AAR, Data policy
|   |-- edge_device_templates.nac.yaml    # Device template definitions
|   |-- edge_feature_templates.nac.yaml   # Feature template definitions
|   |-- localized_policies.nac.yaml       # Localized policies definitions with components (route-policies, ACL, QoS)
|   |-- policy_objects.nac.yaml           # Policy objects
|   |-- sites.nac.yaml                    # Sites data definitions (Template, Model, variables' values)

Device templates define the complete operational configuration for SD-WAN devices and consist of multiple feature templates:

sdwan:
  edge_device_templates:
    - name: "DT-BR-T2-C8000V-01"
      description: "Branch | OSPF | Dual Node"
      device_model: "C8000V"
      system_templates:
        - name: "FT-EDGE-SYSTEM-01"
      vpn_templates:
        - name: "FT-VPN-0-01"    # Transport VPN
        - name: "FT-VPN-512-01"  # Management VPN
        - name: "FT-VPN-10-01"   # Service VPN

Feature templates define configuration for specific SD-WAN features. Each template contains both global values and device-specific variables (indicated with _variable tag):

sdwan:
  edge_feature_templates:
    system_templates:
      - name: "FT-EDGE-SYSTEM-01"
        description: "Base Cisco System template"
        timezone_variable: "timezone"
        system_description_variable: "system_description"
        latitude_variable: "system_latitude"
        longitude_variable: "system_longitude"
        hostname_variable: "system_hostname"
        console_baud_rate: 9600
        idle_timeout: 300
        location_variable: "system_location"
        on_demand_tunnel_variable: "ondemand_tunnel_enable"
        site_id_variable: "site_id"
        system_ip_variable: "system_ip"
        controller_groups_variable: "controller_groups"

Variables defined in the feature templates, which are included in the target device template should be added to sites.nac file with corresponding values.

Sites define the actual deployment with specific device assignments and variable values:

sdwan:
  sites:
    - id: 300
      routers:
        - chassis_id: "C8K-D4D8222C-26DA-83D1-EFA8-EAA6C881AFBF"
          model: "C8000V"
          device_template: "DT-BR-T2-C8000V-01"
          device_variables:
            site_id: 300
            system_ip: "10.0.0.5"
            system_hostname: "SD-BR02-C8KV-R1"
            timezone: "UTC"
            system_description: "Branch Router 1"
            system_latitude: "37.7749"
            system_longitude: "-122.4194"
            system_location: "San Francisco"
            ondemand_tunnel_enable: true
            controller_groups: "1"
        - chassis_id: "C8K-25679DF5-DE95-81BC-5D4A-56907294945B"
          model: "C8000V"
          device_template: "DT-BR-T2-C8000V-01"
          device_variables:
            site_id: 300
            system_ip: "10.0.0.6"
            system_hostname: "SD-BR02-C8KV-R2"
            timezone: "UTC"
            system_description: "Branch Router 2"

Note: Pay attention to localized policies used for a site in order to provide correct references in sites.nac for route-policies variables.

Some feature templates may use optional parameters, and for such cases when value is not required, a specific tag is introduced: TEMPLATE_IGNORE.

Example:

vpn10_ipv4_route1_prefix: TEMPLATE_IGNORE
vpn10_ipv4_route1_nexthop1_ip: TEMPLATE_IGNORE

Policy objects define reusable components like SLA classes and application groups:

sdwan:
  policy_objects:
    sla_classes:
      - name: "SLA-GOOGLE"
        loss: 2
        latency: 250
    application_groups:
      - name: "Google_Apps_New"
        applications:
          - "android-updates"
          - "chrome_update"
          - "youtube"
          - "youtube_hd"

Pre-deployment validation runs a set of syntax and semantic checks against our desired configuration using the nac-validate tool. This validation ensures that:

• All required fields are present
• Data types match schema requirements
• References between components are valid
• Semantic rules are followed

The nac-validate tool runs the SD-WAN as Code syntax and semantics checks as this cannot be done using Terraform. nac-validate is a publicly available tool written by Cisco CX.

Python 3.7+ is required to install nac-validate: Github nac-validate. Tool can be installed using pip:

pip install nac-validate

nac-validate ./data/

If no output is provided by the tool, it means that no syntax or semantic issues were found.

Let’s walk through a practical scenario where we need to update the centralized policy for Application Aware Routing to handle Google Apps traffic with specific SLA requirements.

Your organization wants to optimize Google Apps traffic (android-updates, chrome_update, youtube, youtube_hd) by:

1. Creating a dedicated application list for Google Apps
2. Defining specific SLA requirements for Google traffic
3. Implementing Application Aware Routing policy for optimal path selection
4. Deploying the configuration to branch sites

Objective: Create an application list to match Google Apps traffic for policy application.

Requirements:

• Application list name: Google_Apps_New
• Include applications: android-updates, chrome_update, youtube, youtube_hd

Add the following configuration to your policy_objects.nac.yaml file:

sdwan:
  policy_objects:
    application_lists:
      - name: Google_Apps_New
        applications:
          - android-updates
          - chrome_update
          - youtube
          - youtube_hd

Objective: Define SLA requirements specifically for Google Apps traffic.

Requirements:

• SLA Class name: SLA-GOOGLE
• Latency: 250ms
• Loss: 2%
• Fallback best tunnel criteria: latency

Add the SLA class configuration to your policy_objects.nac.yaml file:

sdwan:
  policy_objects:
    sla_classes:
      - name: SLA-GOOGLE
        latency_ms: 250
        loss_percentage: 2
        fallback_best_tunnel_criteria: latency

Objective: Insert a new sequence in the existing AAR policy to handle Google Apps traffic.

Requirements:

• Insert as sequence ID 5 (renumber existing ID 5 to 6)
• Policy name: GOOGLE-APPS
• Match criteria: Use Google_Apps_New application list
• SLA class: SLA-GOOGLE
• Preferred colors: biz-internet
• Fallback action: fallback_to_best_path

Modify your centralized_policies.nac.yaml file to include the new AAR sequence:

sdwan:
  centralized_policies:
    application_aware_routing:
      - name: AAR-Policy-01
        sequences:
          # ... existing sequences 1-4 ...
          - id: 5
            name: GOOGLE-APPS
            ip_type: ipv4
            type: app_route
            match_criterias:
              - application_list: Google_Apps_New
            actions:
              - counter_name: AAR-GOOGLE
                log: true
                sla_class_list:
                  - sla_class: SLA-GOOGLE
                    preferred_colors:
                      - biz-internet
                when_sla_not_met: fallback_to_best_path
          - id: 6  # Renumbered from 5
            name: DEFAULT
            # ... existing default sequence configuration

Objective: Create a device template using existing feature templates for site deployment.

Requirements:

• Device template for C8000V routers
• Include system, VPN, and interface feature templates
• Reference existing feature template components

Add the device template configuration to your edge_device_templates.nac.yaml file:

sdwan:
  edge_device_templates:
    - name: DT-Site300-C8000V
      description: "Site 300 Branch Device Template"
      device_model: C8000V
      system_templates:
        - name: FT-EDGE-SYSTEM-01
      vpn_templates:
        - name: FT-VPN-0-01      # Transport VPN
        - name: FT-VPN-512-01    # Management VPN
        - name: FT-VPN-10-01     # Service VPN
      interface_templates:
        - name: FT-INT-GE-WAN-01
        - name: FT-INT-GE-LAN-01

Objective: Attach the new device template to site 300 with proper variable assignments.

Requirements:

• Site ID: 300
• Deploy two C8000V routers with the new device template
• Assign appropriate system IPs, hostnames, and other variables

Add the site configuration to your sites.nac.yaml file:

sdwan:
  sites:
    - id: 300
      routers:
        - chassis_id: "C8K-D4D8222C-26DA-83D1-EFA8-EAA6C881AFBF"
          model: C8000V
          device_template: DT-Site300-C8000V
          device_variables:
            site_id: 300
            system_ip: "10.0.0.5"
            system_hostname: "SD-BR02-C8KV-R1"
            timezone: "UTC"
            system_description: "Branch Router 1"
            system_latitude: "37.7749"
            system_longitude: "-122.4194"
            system_location: "San Francisco"
            ondemand_tunnel_enable: true
            controller_groups: "1"
        - chassis_id: "C8K-25679DF5-DE95-81BC-5D4A-56907294945B"
          model: C8000V
          device_template: DT-Site300-C8000V
          device_variables:
            site_id: 300
            system_ip: "10.0.0.6"
            system_hostname: "SD-BR02-C8KV-R2"
            timezone: "UTC"
            system_description: "Branch Router 2"
            system_latitude: "37.7749"
            system_longitude: "-122.4194"
            system_location: "San Francisco"
            ondemand_tunnel_enable: true
            controller_groups: "1"

After completing all tasks, validate your complete data model:

# Validate syntax and semantics
nac-validate ./data/

# Run Terraform plan to check deployment readiness
terraform plan

1. Modular Design: Use reusable templates and policy objects
2. Consistent Naming: Follow naming conventions across all components
3. Validation First: Always validate before deployment
4. Documentation: Document variable purposes and constraints
5. Version Control: Track changes to data model configurations

Through this hands-on use case, you’ve learned to build a complete SD-WAN data model that includes policy objects, centralized policies, device templates, and site deployments. The declarative approach allows you to focus on what you want to achieve rather than how to configure each device individually.

The expandable answer format ensures you can learn at your own pace while having access to complete solutions when needed.
