NaC Testing

In any discussion of Infrastructure as Code, you will find some form of testing. In any modern Development Operations (DevOps) run environment, testing is integrated at different development stages. First you have the unit tests, embedded into code that is being developed and then integration and system testing.

For Network as Code SD-WAN, we provide two aspects of testing. First to ensure that the structure and syntax of the data model is correct, and second post-deployment validation to ensure that the configuration and operational state of the SD-WAN fabric is correct after a change has been applied.

For Network as Code SD-WAN there are two distinct tools that we utilize to achieve our testing objectives:

Note: nac-validate and iac-test were previously known as iac-validate and iac-test

The combination of these tools provides the customer with the combination of tools that avoid common errors from hitting production changes. These tools can be both used inside an automation pipeline or as standalone tools. The following diagram describes what it would look like from a software lifecycle perspective.

Operators can be creating changes in the data model locally and performing checks against the work they are doing. Once completed, then when they push these changes into a central repository, the automation pipeline will perform the same validation checks and tests before accepting the changes.

Let’s take a look at each of these tools in more detail.

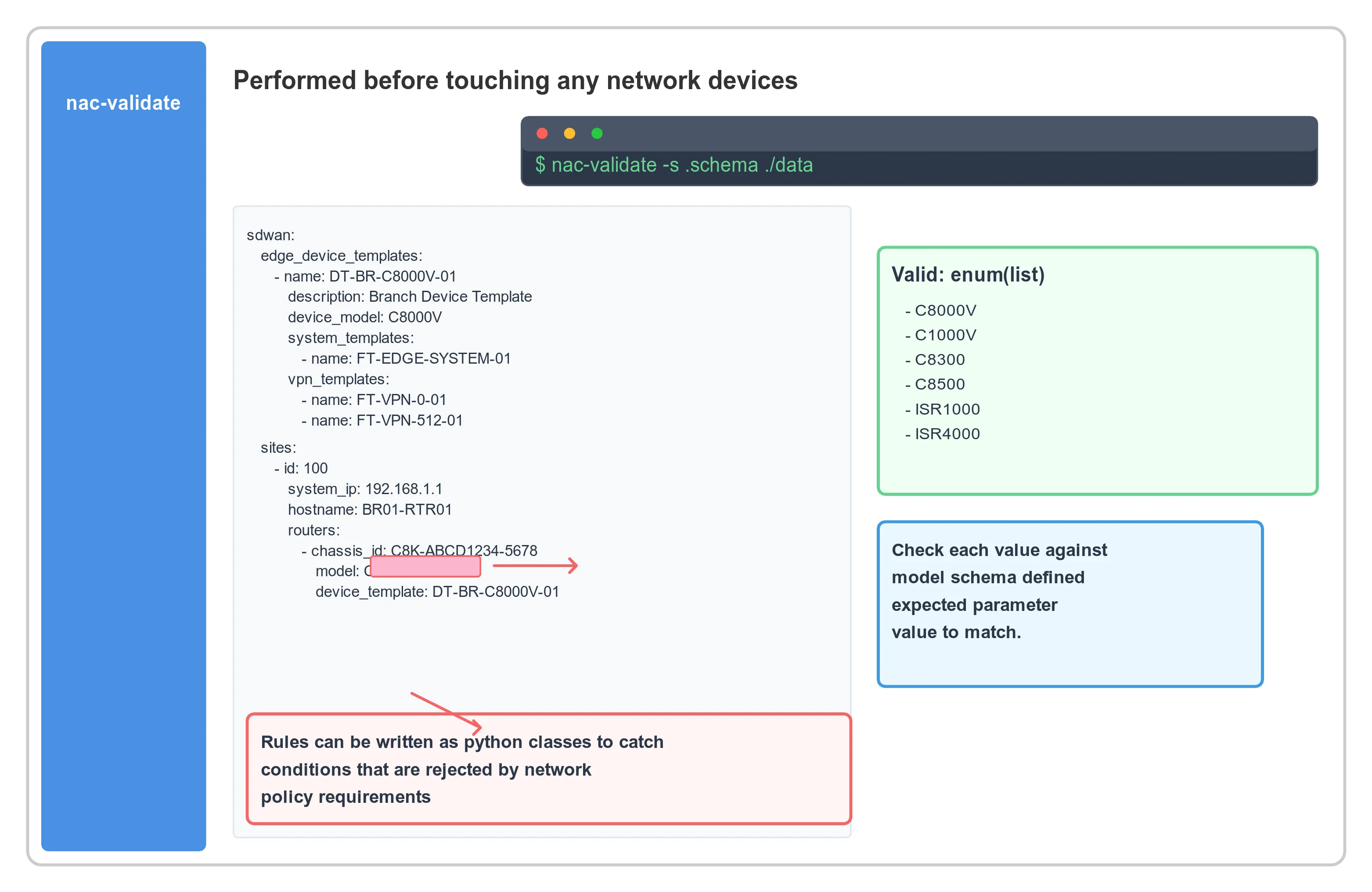

The nac-validate tooling focuses on pre-deployment validation. The best way to “correlate” this to a software development process is to think of it as a linter. It checks the syntax and structure of the SD-WAN data model. To accomplish this, it uses a YAML schema to validate the data model. When working with code linting is a common practice to ensure that the code is syntactically correct and follows best practices. For Network as Code SD-WAN this facility allows the operators to validate their work while they are making changes to the data model.

In addition to the semantic validation, nac-validate also can run rules to perform compliance checks. This is something that is used extensively by the Network as Code for SD-WAN to ensure that the data model is compliant with the requirements of the SD-WAN solution.

Usage: nac-validate [OPTIONS] PATHS...

 A CLI tool to perform syntactic and semantic validation of YAML files.


╭─ Arguments ─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ *    paths      PATHS...  List of paths pointing to YAML files or directories. [default: None] [required]                                                           │
╰─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯
╭─ Options ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╮
│ --verbosity   -v      [DEBUG|INFO|WARNING|ERROR|CRITICAL]  Verbosity level. [env var: NAC_VALIDATE_VERBOSITY] [default: WARNING]                                    │
│ --schema      -s      FILE                                 Path to schema file. [env var: NAC_VALIDATE_SCHEMA] [default: .schema.yaml]                              │
│ --rules       -r      DIRECTORY                            Path to directory with semantic validation rules. [env var: NAC_VALIDATE_RULES] [default: .rules]        │
│ --output      -o      FILE                                 Write merged content from YAML files to a new YAML file. [env var: NAC_VALIDATE_OUTPUT] [default: None]  │
│ --non-strict                                               Accept unexpected elements in YAML files. [env var: NAC_VALIDATE_NON_STRICT]                             │
│ --version                                                  Display version number.                                                                                  │
│ --help                                                     Show this message and exit.                                                                              │
╰─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────╯

To be able to do the semantic validation in nac-validate, there is a schema file that defines the structure of the SD-WAN data model. This schema file is available as part of Network as Code SD-WAN for customers to use. When working with a customer, the schema file is installed inside of the repository build.

The schema file is built utilizing Yamale, a YAML schema validator. Yamale is a Python library that allows Network as Code to perform this validation. Our tool, nac-validate, uses this library to validate the data in the model after some pre-processing steps.

The schema validates critical SD-WAN components including:

• Device Templates: Ensures proper device template structure and dependencies
• Feature Templates: Validates feature template syntax and variable references
• Policy Objects: Checks SLA classes, application groups, and other policy components
• Sites Configuration: Validates site definitions, device assignments, and variable values
• Centralized Policies: Ensures proper policy structure and references
• Localized Policies: Validates route policies, ACLs, and QoS configurations

Install the validation tool if not already available:

pip install nac-validate

In this step you will run the nac-validate tool locally to validate the SD-WAN data model:

cd ~/network-as-code/nac-sdwan
nac-validate ./data/

When you run this command successfully, it should produce no output, indicating that your SD-WAN data model passes all validation checks. If there are validation errors, they will be displayed with specific details about the issues found.

Example of successful validation (no output):

$ nac-validate ./data/
$

Example of validation with errors:

$ nac-validate ./data/
ERROR - Validation failed for file: data/edge_device_templates.nac.yaml
ERROR - Missing required field: device_model in device template DT-BR-C8000V-01
ERROR - Invalid reference: Feature template FT-INVALID-TEMPLATE does not exist

# Validate only device templates
nac-validate ./data/edge_device_templates.nac.yaml

# Validate only sites configuration
nac-validate ./data/sites.nac.yaml

# Validate with verbose output
nac-validate ./data/ -v DEBUG

The SD-WAN schema enforces:

1. Required Fields: All mandatory fields must be present
2. Data Types: Correct data types for each field (string, integer, boolean)
3. Reference Integrity: Template references must exist
4. Value Constraints: Valid choices for enumerations (device models, etc.)
5. Dependency Validation: Feature templates must be compatible with device templates

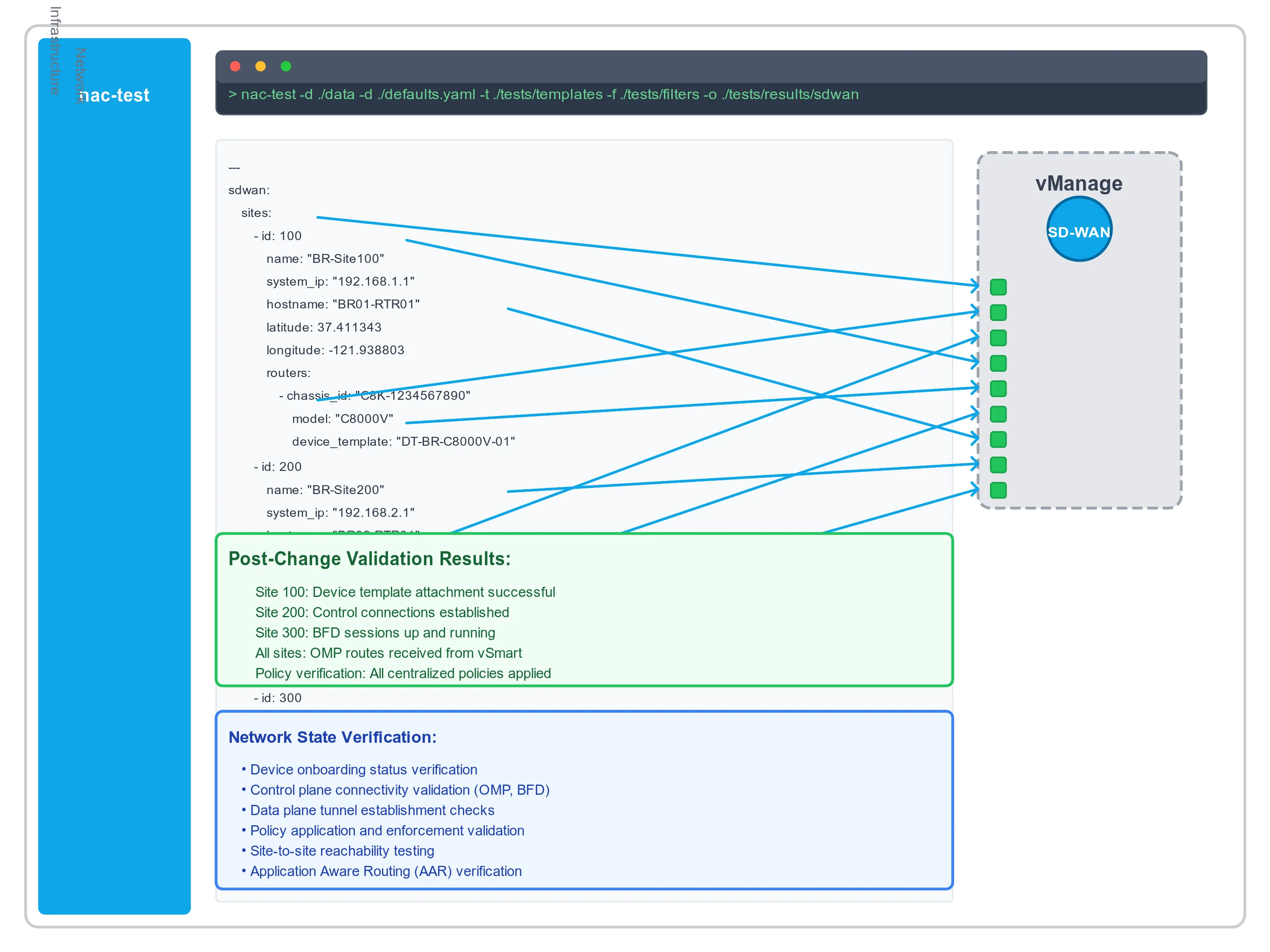

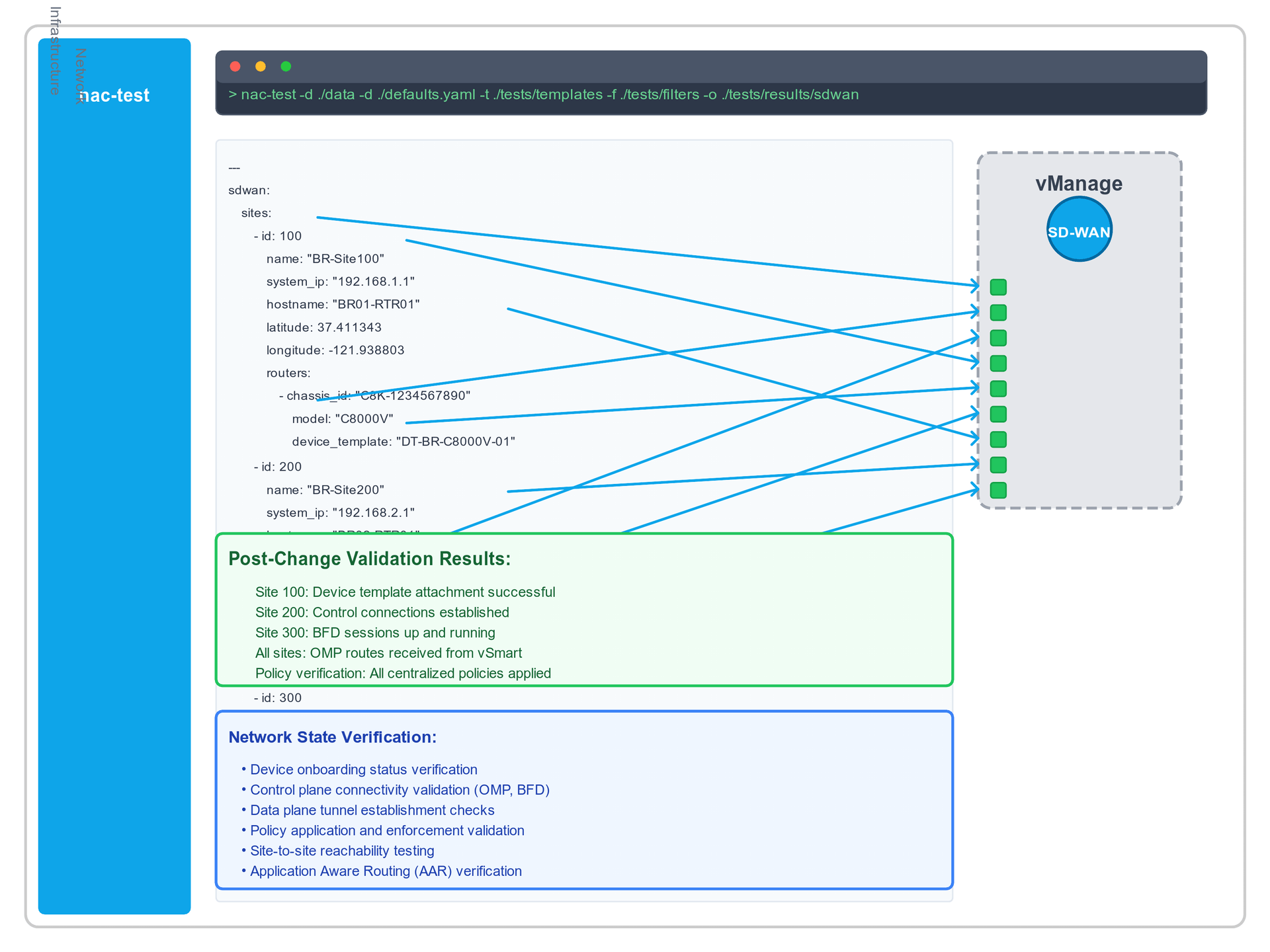

The iac-test tool is used to perform post-deployment validation. This tool is used to validate that the configuration on SD-WAN Manager matches the configuration that is declared in the data model. As part of the SD-WAN solution, you will find a set of tests that verify the fabric configuration.

The primary focus of iac-test is to do a 1:1 verification that the intended configuration matches what is deployed. For this reason, to accomplish this task it is normally executed after the deployment of the configuration to SD-WAN Manager via Terraform.

Python 3.7+ is required to install iac-test: Github iac-test. Tool can be installed using pip:

pip install iac-test

The following Robot Framework libraries are installed with iac-test:

• RESTinstance: For REST API interactions with SD-WAN Manager
• Requests: HTTP client library for API calls
• JSONLibrary: JSON manipulation and validation

iac-test --data ./data --data ./defaults.yaml --templates ./tests/templates --output ./tests/results --filters ./tests/filters

• --data: All data YAML files will be first combined into single data structure provided as input to templating process
• --templates: Each template in the templates directory will be rendered and written to the output folder, keeping the folder structure
• --output: Directory where test results and reports will be generated
• --filters: Path to Jinja filters. Custom Jinja filters can be used by providing a set of Python classes where each filter is implemented as a separate Filter class in a .py file located in the —filters path

There are 2 main groups of tests: Configuration and Operational.

Configuration tests verify if the desired configuration is in place as per defined data model:

• Device Templates: Verify templates are created with correct feature template associations
• Feature Templates: Validate individual feature configurations match data model
• Policy Objects: Confirm SLA classes, application groups, and other objects are properly configured
• Centralized Policies: Validate control policies, AAR, and data policies
• Localized Policies: Check route policies, ACLs, and QoS configurations
• Site Attachments: Verify devices are properly attached to templates with correct variables

Operational tests check operational parameters of the SD-WAN fabric:

• Control Connections: Verify OMP sessions between vEdges and controllers
• BFD Sessions: Check BFD session status between devices
• Device Status: Confirm device reachability and operational state
• Policy Application: Verify policies are active and functioning correctly

To enable the execution of the iac-test tool, you need to create a results directory where the test results will be stored:

cd ~/network-as-code/nac-sdwan
mkdir -p tests/results

Execute configuration tests to verify your SD-WAN deployment matches the data model:

cd ~/network-as-code/nac-sdwan
iac-test --data ./data --data ./defaults.yaml --templates ./tests/templates --output ./tests/results --filters ./tests/filters

Example successful output:

Robot Framework remote server at 127.0.0.1:8270 started.
Storing .pabotsuitenames file
2025-01-15 10:57:29.020572 [PID:347524] [0] [ID:0] EXECUTING Config.DeviceTemplates.DeviceTemplates
2025-01-15 10:57:30.225227 [PID:347524] [0] [ID:0] PASSED Config.DeviceTemplates.DeviceTemplates in 1.2 seconds
2025-01-15 10:57:31.020572 [PID:347524] [0] [ID:1] EXECUTING Config.FeatureTemplates.FeatureTemplates
2025-01-15 10:57:32.225227 [PID:347524] [0] [ID:1] PASSED Config.FeatureTemplates.FeatureTemplates in 1.2 seconds
2025-01-15 10:57:33.020572 [PID:347524] [0] [ID:2] EXECUTING Config.PolicyObjects.PolicyObjects
2025-01-15 10:57:34.225227 [PID:347524] [0] [ID:2] PASSED Config.PolicyObjects.PolicyObjects in 1.2 seconds
15 tests, 15 passed, 0 failed, 0 skipped.
===================================================
Output:  /home/user/network-as-code/nac-sdwan/tests/results/output.xml
XUnit:   /home/user/network-as-code/nac-sdwan/tests/results/xunit.xml
Log:     /home/user/network-as-code/nac-sdwan/tests/results/log.html
Report:  /home/user/network-as-code/nac-sdwan/tests/results/report.html
Stopping PabotLib process
Robot Framework remote server at 127.0.0.1:8270 stopped.
PabotLib process stopped
Total testing: 3.60 seconds
Elapsed time:  4.20 seconds

The test execution generates comprehensive reports:

tests/results/
├── config/
│   ├── centralized_policies/
│   ├── edge_device_templates/
│   ├── edge_feature_templates/
│   ├── localized_policies/
│   └── policy_objects/
├── log.html          # Detailed execution log
├── output.xml        # Raw test output in XML format
├── pabot_results/    # Parallel execution results
├── report.html       # Main test report (open this file)
├── sdwan_common.resource  # Shared test resources
└── xunit.xml         # XUnit format for CI/CD integration

Open report.html to view comprehensive test results with:

• Test execution summary
• Pass/fail status for each test
• Detailed logs for failed tests
• Configuration comparison results

! [SD-WAN Test Report Example] (img/report_view_example.png)

• Green status: Configuration matches data model exactly
• All assertions passed: SD-WAN objects are properly configured
• No discrepancies: Deployed state matches intended state

Failed tests indicate mismatches between data model and deployed configuration:

FAIL : Device template 'DT-BR-C8000V-01' missing feature template 'FT-EDGE-VPN10-01'
FAIL : Policy object 'SLA-GOOGLE' has incorrect loss threshold: expected '2', got '3'
FAIL : Site 300 device variables: missing 'system_hostname' for device with chassis_id 'C8K-ABC123'

Common failure scenarios:

• Missing objects: Templates or policies not created
• Configuration drift: Manual changes made outside of Terraform
• Variable mismatches: Site variables don’t match template requirements
• Reference errors: Broken references between objects

# Test only device templates
iac-test --data ./data --templates ./tests/templates/config/edge_device_templates --output ./tests/results --include device_templates

# Test only policy objects
iac-test --data ./data --templates ./tests/templates/config/policy_objects --output ./tests/results --include policy_objects

# Generate tests without executing them
iac-test --data ./data --templates ./tests/templates --output ./tests/results --dry-run

# Enable debug logging
iac-test --data ./data --templates ./tests/templates --output ./tests/results -v DEBUG

Both nac-validate and iac-test are designed to integrate seamlessly into CI/CD pipelines:

validate:
  script:
    - nac-validate ./data/
    - echo "Data model validation passed"

test:
  script:
    - iac-test --data ./data --templates ./tests/templates --output ./tests/results
    - echo "Configuration tests completed"
  artifacts:
    reports:
      junit: tests/results/xunit.xml
    paths:
      - tests/results/

1. Run validation locally before committing changes
2. Use verbose mode when debugging validation issues
3. Fix all validation errors before attempting deployment
4. Version control schema files with your data model

1. Test immediately after deployment to catch configuration drift
2. Run tests regularly to ensure ongoing compliance
3. Archive test results for compliance and auditing
4. Set up alerts for test failures in production environments

1. Add custom tests for organization-specific requirements
2. Monitor test execution time and optimize as needed
3. Review failed tests to improve data model quality
4. Update test templates as SD-WAN requirements evolve

# Schema file not found
export NAC_VALIDATE_SCHEMA=/path/to/schema.yaml

# Permission issues
chmod +r ./data/*.yaml

# YAML syntax errors
yaml-lint ./data/

# Connection issues to SD-WAN Manager
export SDWAN_URL="https://your-vmanage-ip"
export SDWAN_USERNAME="admin"
export SDWAN_PASSWORD="your-password"

# Test template issues
iac-test --render-only --data ./data --templates ./tests/templates --output ./debug

The combination of nac-validate and iac-test provides comprehensive testing capabilities for SD-WAN as Code:

• Pre-deployment validation ensures data model correctness before deployment
• Post-deployment testing verifies that deployed configuration matches intent
• Continuous validation helps maintain configuration compliance over time
• CI/CD integration enables automated testing in DevOps workflows

By implementing these testing practices, you can significantly reduce the risk of configuration errors and ensure that your SD-WAN fabric operates according to your declared intent.
